934099109
HIRSCHMANN TEST AND MEASUREMENT 934099109 安全插头, 4MM, 紫色

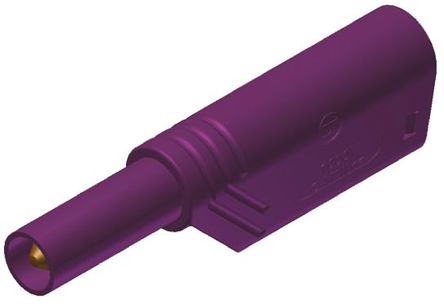

The LAS S WS series from are 4mm rigid spring loaded safety plugs. These are safety connectors for tower construction with screw connection for leads from 0.5mm² to 1.5 mm² and 4.2mm maximum lead outer diameter. Simple assembly by Click-System.
- .
- IEC 61010 measurement category
- .
- Screw termination
- .
- Rated voltage of AC/DC 1000V
- .
- Rated current of 24A
- .
- Contact resistance is 10mohm
- .
- Nickel plated brass contact
- .
- Contact spring material is beryllium copper
- .
- UL 94 V-2 approved polyamide PA housing material
- .
- Temperature range from -15°C to +70°C
- .
- Available in variety of colours
