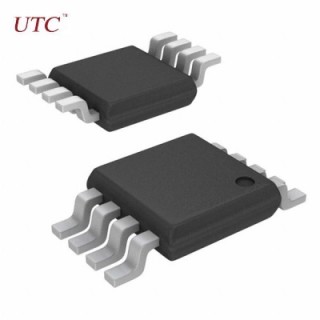

MC34072

单电源运算放大器、宽带宽、高转换率、低总谐波失真、输出短路保护

DESCRIPTION

The offer 4.5MHz of gain bandwidth product, 13V/μs slew rate and fast setting time without the use of JFET device technology. Although it can be operated from split supplies, it is particularly suited for single supply operation, since the common mode input voltage range includes ground potential VEE.

FEATURES

* Wide bandwidth: 4.5 MHz

* High slew rate: 13V/μs

* Fast settling time:1.1μs to 0.1%

* Wide single supply operation: 3.0V to 44V

* Wide input common mode voltage range:  Includes ground VEE

* Low input offset voltage: 3.0mV maximum

* Large output voltage swing: -14.7V to +14V   with +-15V supplies

* Large capacitance drive Capability: 0pF to 10,000 pF

* Low total harmonic distortion: 0.02%

* Excellent phase margin: 60°

* Excellent gain margin: 12dB

* Output short circuit protection

* ESD diodes/clamps provide input protection
