FT232RQ-REEL

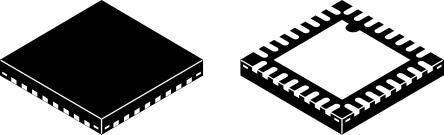

FT232R - USB to Serial UART with Clock Generator, FTDI ChipThe FTDI Chip FT232R is a USB to serial UART interface with optional clock generator output. Asynchronous and synchronous bit bang interface modes are also available. Together with EEPROM, clock circuit and USB resistors effectively makes it a "3 in 1" chip for some applications. The internally generated clock 6 MHz, 12 MHz, 24 MHz, and 48 MHz can be used to drive a microcontroller or external logic. The FT232R is available in compact 28-pin SSOP RS 406-580 and 32-pin QFN RS 730-0168 packages.\- Single chip USB to asynchronous serial data transfer interface. \- Entire USB protocol handled on the chip. No USB-specific firmware programming required. \- Fully integrated 1024-bit EEPROM storing device descriptors and CBUS I/O configuration. \- Fully integrated USB termination resistors. \- Fully integrated clock generation with no external crystal required plus optional clock output \- Data transfer rates from 300 Baud to 3 MBaud RS422, RS485, RS232 at TTL levels. \- 128 B receive buffer and 256 B transmit buffer utilising buffer smoothing technology to allow for high data throughput ### 串行输入/输出外设

串行输入/输出外围设备，

立创商城:
FT232RQ-REEL

得捷:
IC USB FS SERIAL UART 32-QFN

欧时:
FTDI Chip FT232RQ-REEL 3MBd USB 至串行 UART, 支持RS232，RS422，RS485 UART标准, 5 V, 32引脚 QFN封装

贸泽:
USB Interface IC USB to Serial UART Enhanced IC QFN-32

Allied Electronics:
USB Full Speed to Serial UART IC Includes Oscillator and EEPROM

Chip1Stop:
USB-to-UART 1-CH 256byte FIFO 5V 32-Pin QFN EP T/R

TME:
Interface; USB-UART; Full Speed; QFN32

Verical:
USB-to-UART 1-CH 256byte FIFO 5V 32-Pin QFN EP T/R

Win Source:
USB Bridge, USB to UART USB 2.0 32-QFN Exposed Pad 5x5
