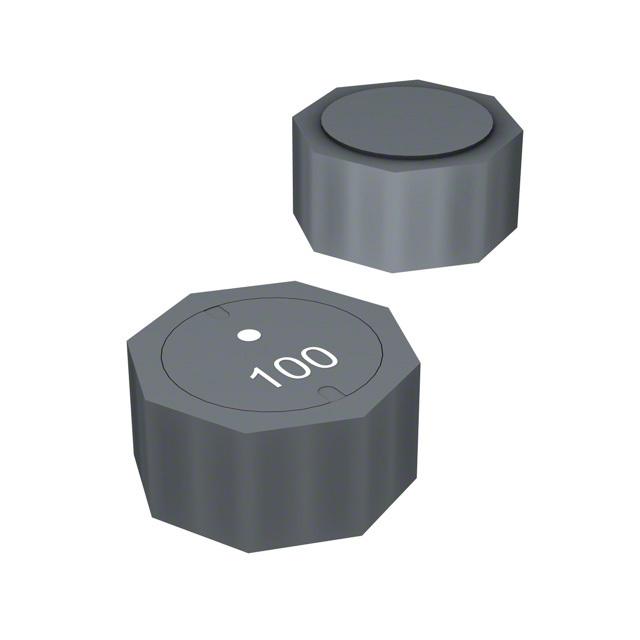

SRU1048-4R7Y
SHIELDED SMD功率电感 Shielded SMD Power Inductors
**Features:
**
* Unit Height of 4.8 mm
* Current Up to 7.8 A**
Applications:
**
* Input/Output of DC/DC Converters
* Power Supplies for: Portable Communication Equipment, Camcorders, LCD TVs and Car Radios
得捷:
FIXED IND 4.7UH 5.5A 9.5MOHM SMD
欧时:
Inductor Power shielded 4.7uH 30% 4.75A
立创商城:
4.7uH ±30% 5.5A 9.5mΩ
e络盟:
功率电感SMD, 4.7 µH, 5.5 A, 屏蔽, 4.75 A, SRU1048 Series, 10mm x 10mm x 4.8mm
艾睿:
Does your electronic circuit design require filtering, power supplies, and other similar functions? Then this power SRU1048-4R7Y surface mount inductor from Bourns is perfect for you! This SMD inductor has an operating temperature range of -40 °C to 125 °C. This product will be shipped in tape and reel packaging so that components can be mounted effectively. Its test frequency is 100K Hz, while its minimum self-resonant frequency is 30MTyp Hz. This product is 10.3 mm long, 5.1 mm tall and 10.3 mm deep. This device utilizes wirewound technology. This SMD inductor has a maximum DC current of 5.5 A with a maximum resistance of 9.5m Ohm. It has an inductance of 4.7u H.
Allied Electronics:
Inductor; Power; Shielded; Wirewound; 4.7uH; 30%; 5.5A
安富利:
Ind Power Shielded Wirewound 4.7uH 30% 100KHz 12Q-Factor Ferrite 5.5A T/R
Chip1Stop:
Inductor Power Shielded Wirewound 4.7uH 30% 100KHz 12Q-Factor Ferrite 5.5A 9.5mOhm DCR T/R
Verical:
Inductor Power Shielded Wirewound 4.7uH 30% 100KHz 12Q-Factor Ferrite 5.5A 0.0125Ohm DCR T/R
Newark:
# BOURNS SRU1048-4R7Y Surface Mount Power Inductor, SRU1048 Series, 4.7 µH, 5.5 A, 4.75 A, Shielded, 9500 µohm
MASTER:
Inductor Power Shielded Wirewound 4.7uH 30% 100KHz 12Q-Factor Ferrite 5.5A 9.5mOhm DCR T/R
Online Components:
Inductor Power Shielded Wirewound 4.7uH 30% 100KHz 12Q-Factor Ferrite 5.5A 9.5mOhm DCR T/R
Electro Sonic:
Inductor Power Shielded Wirewound 4.7uH 30% 100KHz 12Q-Factor Ferrite 5.5A 9.5mOhm DCR T/R
Win Source:
FIXED IND 4.7UH 5.5A 9.5MOHM SMD / 4.7 µH Shielded Drum Core, Wirewound Inductor 5.5 A 9.5mOhm Nonstandard
