IFMA0035

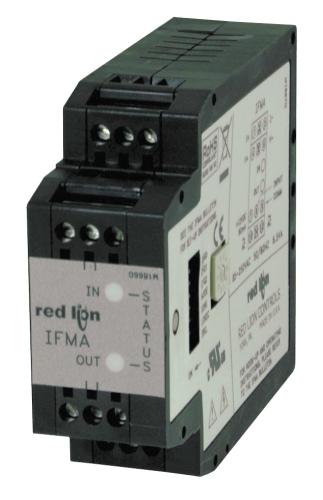

RED LION CONTROLS  IFMA0035  频率/模拟信号转换器，直流9-32V

The is a 3-way electrical isolation DC powered Frequency to Analogue Converter accepts frequency inputs and output analogue voltage or current in proportion to the input frequency with 0.1% accuracy. The IFMA signal conditioner can accept any frequency source input from 1Hz to 25kHz and can be easily configured using a seven position DIP switch, rotary switch and/or push-button. The input circuitry is also DIP switch selectable for a variety of sources. LED lights on the face of the unit illuminate under normal operation to display the input and output status of the IFMA. These LEDs are also used to provide visual feedback for device configuration. The unit is equipped with a universal mounting foot and can be mounted to either a top hat EN 50 022 or a G profile EN 50 035 - G32 DIN rail.

.

Four output operating ranges

.

Programmable input circuit accepts outputs from a variety of sensors

.

9 to 32VDC Power input

.

Low frequency cut-out and over range indication
