0009484068

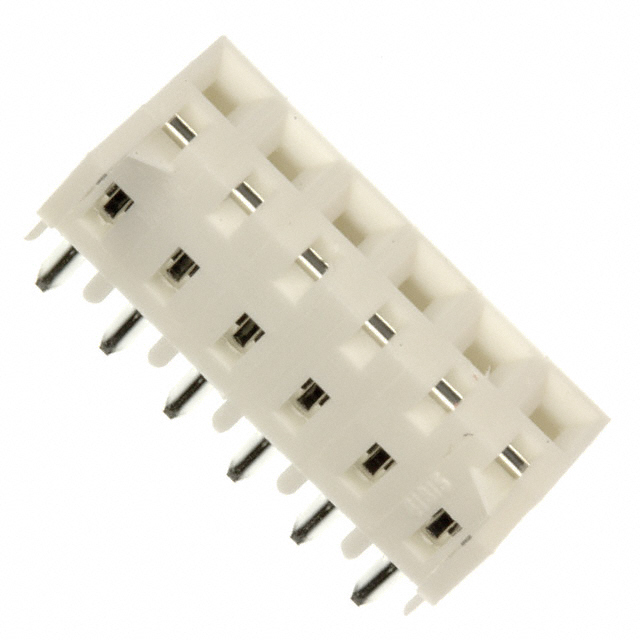

3.96毫米( .156 “ )间距KK® PC板连接器,顶面入口,聚酯连接器, 5.0μM ( 200μ ”),锡(Sn ) , 6电路 3.96mm .156" Pitch KK® PC Board Connector, Top Entry, Polyester Connector, 5.0μm 200μ" Tin Sn, 6 Circuits

6 Position Receptacle Connector Through Hole


得捷:
CONN RCPT 6POS 0.156 TIN PCB


贸泽:
Molex KK 156 PCB Assy Top 06 Ckts Tin


艾睿:
Reduce the possibility of accidentally shorting pins when using a printed circuit board with this socket strip 0009484068 header connector from Molex. This RCP connector&s;s 6 contacts that are made out of phosphor bronze and plated with tin over copper. It has a receptacle type gender. This is a 1-row connector. It has a straight body orientation. Its pitch is 3.96 mm. It has a maximum voltage rating of 250 V. This device has a maximum current rating of 5 A/contact. The item will be shipped in tray orientation. 0009484068 is housed in white polyester. It uses the solder termination method. This connector has an operating temperature of -40 to 105 °C. This product is 23.67 mm long, 11.4 mm tall and 11.92 mm deep.


0009484068 PDF数据文档
图片 型号 厂商 下载
0009484068 Molex 莫仕
0009652028 Molex 莫仕
0009652038 Molex 莫仕
0009652048 Molex 莫仕
0009652068 Molex 莫仕
0009652058 Molex 莫仕
0009185061 Molex 莫仕
0009185121 Molex 莫仕
0009185094 Molex 莫仕
0009016061 Molex 莫仕
0009016064 Molex 莫仕
