TLE7259-3LE

LIN 收发器 TRANSCEIVER

Description:

The TLE7259-3 is a transceiver for the Local Interconnect Network LIN with integrated wake-up and protection features. It is designed for in-vehicle networks using data transmission rates from 2.4 kbps to 20 kbps. The TLE7259-3 operate as a bus driver between the protocol controller and the physical bus of the LIN network. Compliant to all LIN standards and with a wide operational supply range the TLE7259-3 can be used in all automotive applications.



The usage of different operation modes and the INH output allow the TLE7259-3 to control external components, like e.g. voltage regulators. In Sleep-mode the TLE7259-3 draws typically less than 8 μA of quiescent current while still being able to wake up when detecting LIN bus traffic and a local wake up signalst. The very low leakage current on the BUS pin makes the TLE7259-3 especially suitable for partially supplied networks.



Based on the Smart Power Technology SPT®, the TLE7259-3 provides excellent ESD Robustness and a very high electromagnetic compliance EMC. The TLE7259-3 reaches very low levels of electromagnetic emission within a broad frequency range, independent from the battery voltage. The TLE7259-3 and the Infineon SPT® technology are AEC qualified and tailored to withstand the harsh condition of the automotive environment.

Summary of Features:

.

Single-wire LIN transceiver for transmission rates up to 20 kbps

.

Compliant to ISO 17987-4 and LIN Specification 2.2A

.

Very low current consumption in sleep mode with wake-up functions

.

Very low leakage current on the BUS pin

.

Digital I/O levels compatible with 3.3 V and 5 V microcontrollers

.

TxD protected with dominant time-out function

.

Improved receiver performance: Reduced progration delay and increased delay symmetry

.

BUS short to V BAT protection and BUS short to GND handling

.

Over temperature protection and supply undervoltage detection

.

Flash mode supporting accelerated microcontroller programming

.

Very high ESD robustness, ± 15 kV according to IEC61000-4-2

.

Optimized for high electromagnetic compatibility EMC; Very low emission and high immunity to interference

.

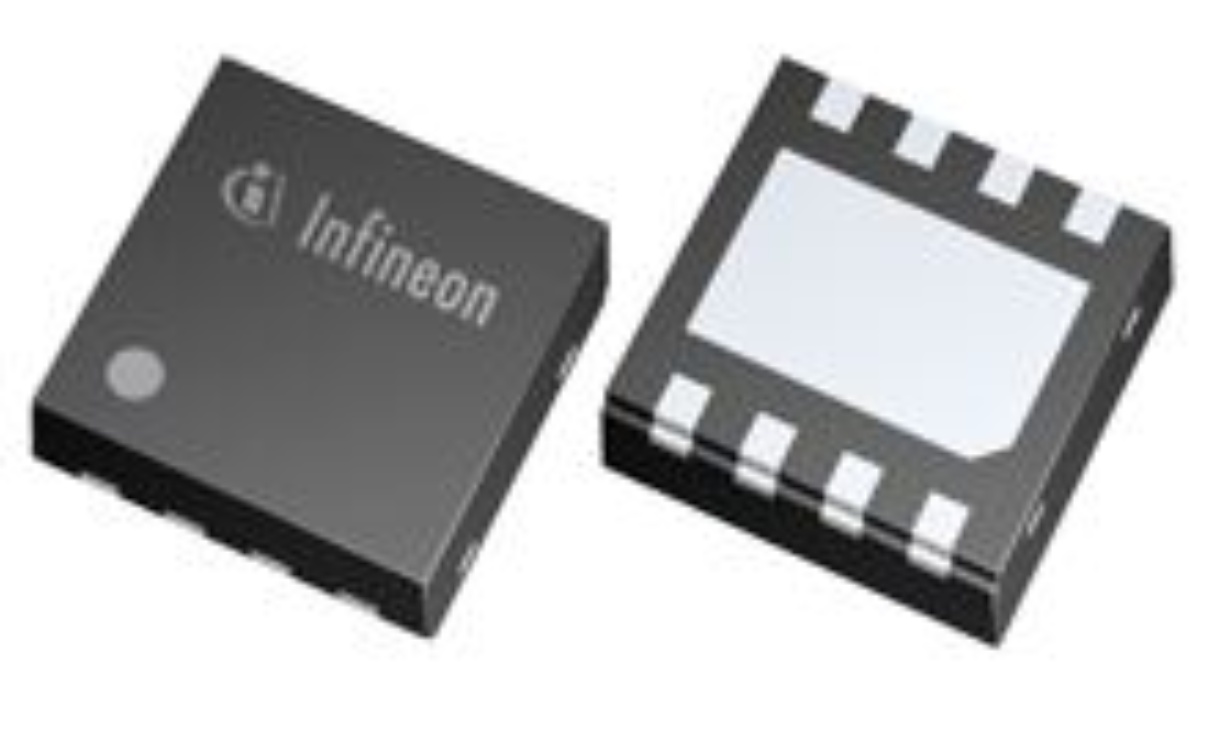

Availible in standard PG-DSO-8 and leadless PG-TSON-8 packages

.

PG-TSON-8 package supports Automated Optical Inspection AOI

.

Suitable for 12 V and 24 V board net

.

Green Product RoHS compliant

.

AEC Qualified
