1827994

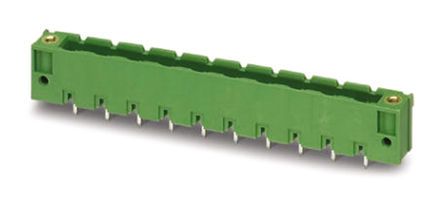

Phoenix Contact MINI COMBICON MC 系列 3.81mm 节距 15 路 PCB 针座 1827994, 焊接端接

Conn Shrouded Header HDR 15 POS 3.81mm Solder RA Thru-Hole

得捷:
TERM BLOCK HDR 15POS 3.81MM

欧时:
Phoenix Contact MINI COMBICON MC 系列 3.81mm 节距 15 路 PCB 针座 1827994, 焊接端接

贸泽:
Pluggable Terminal Blocks 15 Pos 3.81mm pitch Through Hole Header

艾睿:
Easily mount this shrouded 1827994 header connector from Phoenix Contact onto your PCB project to support a variety of physical configuration options. This HDR connector has 15 contacts that are plated with tin. It has a right angle body orientation. It has a header type gender. It has a maximum voltage rating of 160 V. This is a 1-row connector. Its pitch is 3.81 mm. This device has a maximum current rating of 8 A. This product is 67.54 mm long, 7.25 mm tall and 9.2 mm deep. It uses the solder termination method. 1827994 is housed in green polybutylene terephthalate.

Verical:
Conn Shrouded Header 4 Sides HDR 15 POS 3.81mm Solder RA Thru-Hole

MASTER:
PCB headers - nominal current: 8 A - rated voltage III/2: 160 V - nominal cross section: 1.5 mm² - number of positions: 15 - pitch: 3.81 mm - color: green - contact surface: Tin - mounting: Wave soldering - pin layout: Linear pinning - solder pin [P]: 3

Online Components:
Conn Shrouded Header HDR 15 POS 3.81mm Solder RA Thru-Hole

Electro Sonic:
PCB headers - nominal current: 8 A - rated voltage III/2: 160 V - nominal cross section: 1.5 mm² - ...
