THS3024-TK

THS3000 系列手持式示波器THS3000 系列手持式示波器用紧凑的便携式封装提供台式示波器的性能。 它们提供真正的便携性和电池操作，经优化可用于工作台设计和现场测试。THS3000 的主要应用包括电子系统的设计和调试，通过使用单个仪器可节省时间和测试设备成本，以测量嵌入式模拟和数字信号或进行浮点、差分测量，用于电源应用。 用于工业电源和调试，四个隔离通道便于测量三相电源或同时捕获数字控制和电源信号。 其他类型应用包括验证和记录安装前后的电源系统工作条件。完善的测量和分析，包括自动测量、光标、波形数学、FFT、持久显示和波形通过/失败测试 高级数据捕获模式，包括测量数据记录/趋势 TrendPlot®、自动波形记录和波形通过/失败测试 7 小时电池寿命（用户可更换） USB 微型 B 设备，支持 PC 连接 USB 主机端口，用于可移动闪存驱动器存储 OpenChoice 台式 PC 通信软件，用于快速轻松的数据交换 ### TekScope

**Portable Performance for Challenging Environments **

With four isolated channels and up to 7 hours of battery life, the lightweight THS3000 Handheld Oscilloscope Series enables you to safely make floating or differential measurements on your bench or in the field. Now you can tackle tough environments with the performance you expect from — safely and affordably.

All Models Include: THP0301-Y/B/M/G 300 MHz 10X Passive Probes, Lithium-ion Battery with 7-hour battery life, Carrying Handle, Hanging Strap, USB-A to Mini USB-B Cable for PC communication, Installation/Safety Manual, Documentation CD

.

2, AC Power Adapter with Power Cord, ACHHS Soft-sided Carry Case standard with non-TK, optional for TK models, OpenChoice® Desktop PC Communication Software, Calibration Certificate Documenting Traceability to National Metrology Institutes and ISO9001 Quality System Registration, Three-year Warranty.

**

**

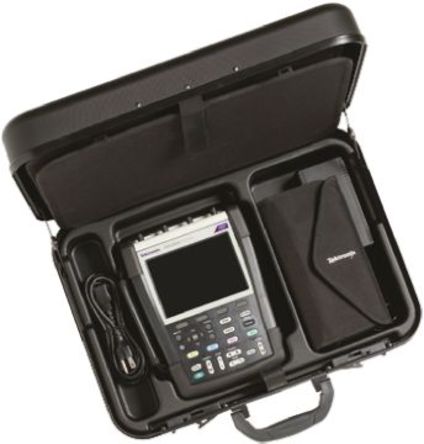

TK Models Also Include: Hard-sided travel case instead of soft case, soft-sided probe case, 2 probe replacement accessory kits.

**

**

**Features & Benefits

**

**

Key Performance Specifications

.

*

* 100 MHz or 200 MHz Bandwidth Models

* Maximum Sample Rates up to 5 G S/s and 200 ps Resolution

* 4 Fully Isolated and Floating Channels

* 600 VRMS CAT III , 1000 VRMS CAT II Rated Inputs BNC t o Earth Ground**

**

**

Measurement and Analysis

.

*

* 21 Automatic Measurements

* Waveform Math and FFT Spectral Analysis

* Volts, Time, Frequency, Watts Cursor Measurements

**Application Functions**

* Measurement Data Logging with TrendPlot™

* Waveform Pass/Fail Limit Testing

* Automatic 100 Display Screens Recorder

**Ease of Use Features**

* 6 in. 153 mm Bright Color Display

* USB Device and Host Support

* 7 Hours of Continuous Battery Operation

**Applications**

* Embedded Analog and Digital Design

* Power Devices, Power Electronics, and Power Supply Design

* Automotive and Avionics Design and Maintenance

* Industrial Equipment Design and Installation

* Field Test and Service
