DG413FEUE+

模拟开关, 故障保护, 4 放大器, SPST-常闭, SPST-常开, 35 ohm, 9V 至 36V, ± 4.5V 至 ± 20V, TSSOP, 16 引脚

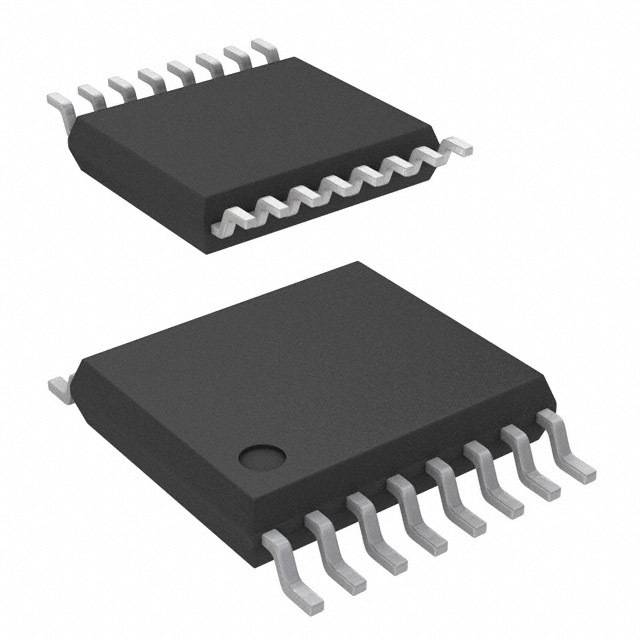

The from Products is a quad, rail to rail, fault-protected, SPST analogue switch in 16 pin TSSOP package. It is pin compatible with the industry-standard nonprotected DG413. This switch features fault-protected inputs and Rail to Rail signal handling capability. All terminals are protected from overvoltage faults up to ±36V with power on and up to ±40V with power off. During a fault condition, the COM, NO or NC terminal becomes an open circuit and only microamperes of leakage current flow from the source. On-resistance is 35ohm max and is matched between switches to 1.5ohm max at +25°C. The DG413F has two NC and two NO switches. All digital inputs have +0.8V and +2.4V logic thresholds, ensuring both TTL and CMOS logic compatibility when using ±15V or a single +12V supply. It is used in communication systems, signal routing, test equipment, data acquisition, industrial and process control systems, avionics and redundant/backup systems.

.

Operates with dual power supplies ranging from ±4.5V to ±20V or single supply between +9V and +36V

.

No power supply sequencing required

.

Control line fault protection from V- - 0.3V to V- + 40V

.

Pin compatible with industry standard DG413

.

20ns typ fault response time

.

Operating temperature range from -40°C to +85°C

.

Audio Signal Routing; Battery-Operated Systems; Communication Systems; Heads-Up Displays; Military Radios; PBX, PABX; Sample-and-Hold Circuits; Test Equipment
