TLE8458GV33XUMA2

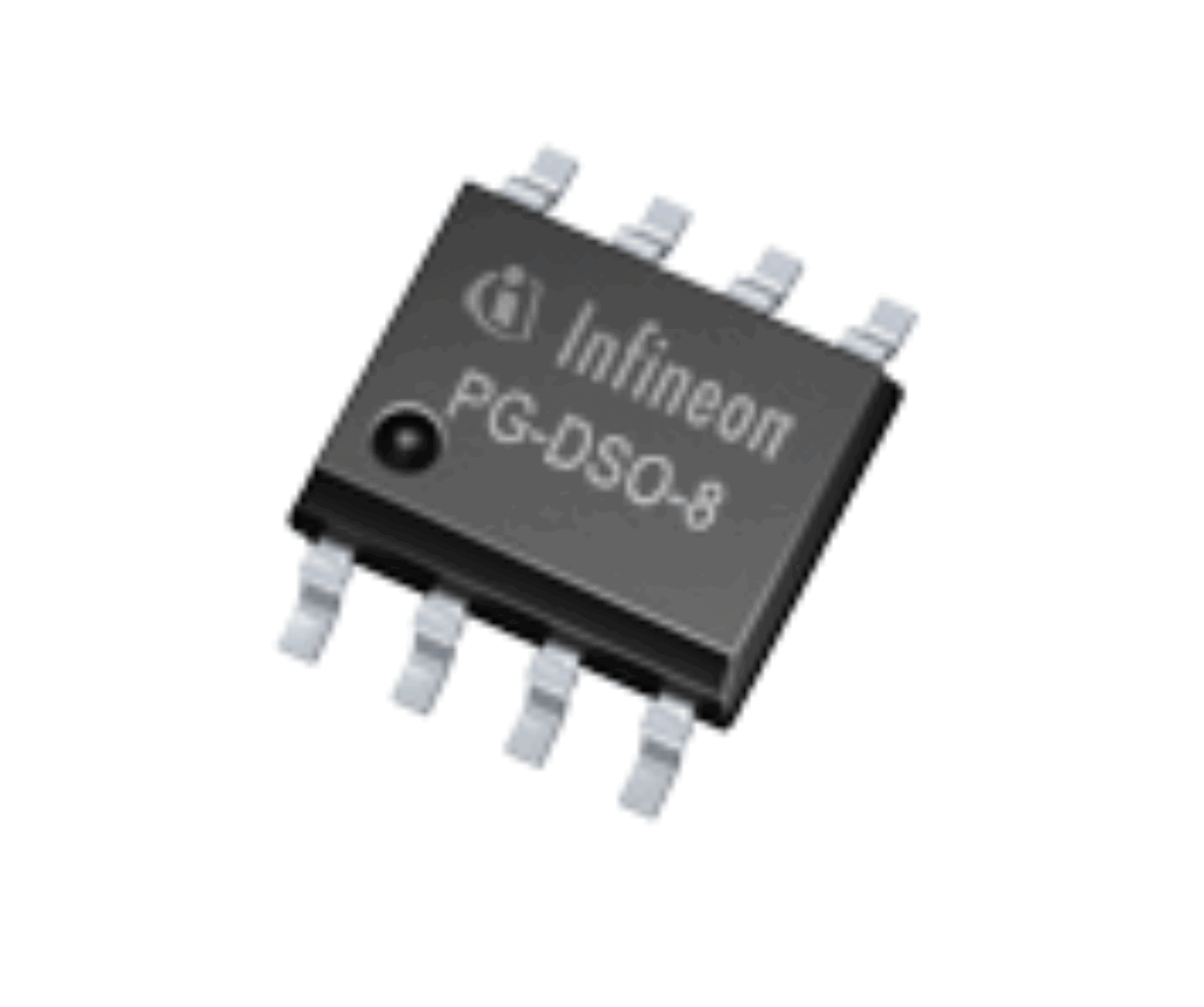

LIN Transceiver with Integrated Vreg 5V 10.4kBd Automotive 8Pin DSO T/R

Description:

The TLE8458G V33 and its derivatives TLE8458G, TLE8458GU and TLE8458GUV33, integrate a low drop voltage regulator and a LIN transceiver on one monolithic circuit. The device is suitable to supply microcontrollers and driving a LIN bus at the same time. The TLE8458Gx is pin compatible to stand-alone LIN transceivers like the TLE7259-2GE. The combination of a voltage regulator and a LIN transceiver on one circuit decreases the quiescent current for a typical application to a value of 8 μA, while the TLE8458G is still able to wake-up off a LIN bus signal or a signal change on the local wake-up input WK. Compliant to all LIN standards and with a wide operational supply range, the TLE8458G can be used in all automotive applications. Based on the Smart Power Technology SPT®, the TLE8458Gx provides excellent ESD robustness together with a very high electro-magnetic immunity EMI. The TLE8458Gx reaches a very low level of electromagnetic emission EME within a broad frequency range. The TLE8458Gx family and the Infineon SPT® technology are AEC qualified and tailored to withstand the harsh conditions in the automotive environment.

Summary of Features:

.

LIN Transceiver compliant to LIN 2.1 20 kBit / s or SAE J2602 10.4 kbit / s

.

5 V or 3.3 V Low Drop Voltage Regulator

.

50 mA output current capability

.

Normal, Stop, and Sleep modes

.

Wake - Up via bus from Sleep Mode

.

Wake - Up from Local WK pin

.

Very low quiescent current in Stop Mode

.

Very low quiescent current in Sleep Mode

.

Very high ESD Robustness ± 10 kV according IEC61000-4-2

.

Bus short to ground and VBat protection

.

Software Flash mode

.

Over-Temperature protection

.

Pin- and function compatible to single LIN Transceivers, like TLE7259-2GE/GU

.

Fully compatible to TLE8458E

.

Green RoHS compliant product

.

AEC Qualified
