07111000024

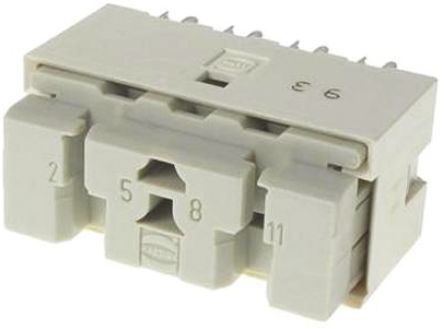

Harting Har Bus HM Mini Coax Backplane ConnectorsThe Harting Mini Coax backpane connectors are a multi line RF connector for blind mating of board to board or board to cable applications. The Mini Coax connector is mainly used in both RF and IF signal transmission and has a frequency range from DC to 2.5 GHz. Due to its compact size and excellent crosstalk features, the Harting Mini Coax backpane connector system is ideal for many high end equipment applications.Dielectric withstand voltage ≤1000 V for 60s Power 40W at 2.5GHz Temperature range -55 to +125 °C Liquid crystal polymer moulding 500 Mating cycles ### Harting 底板连接器
Harting Har 总线 HM 微型同轴背板
Harting 微型同轴背板连接器是多线路射频连接器，用于板对板或板到线盲配应用。微型同轴连接器主要用于射频和中频信号传输，具有从直流到 2.5 GHz 的频率范围。由于其紧凑型尺寸和极佳的串扰功能，Harting 微型同轴背板连接器系统特别适用于许多高端设备应用。
介电耐压 ≤1000 V（60 秒）
功率 40W（2.5GHz 时）
温度范围 -55 至 +125 °C
液晶聚合物模制
500 次接合
得捷:
CONN RCPT COAX 8POS PCB
欧时:
### Harting Har Bus HM Mini Coax Backplane ConnectorsThe Harting Mini Coax backpane connectors are a multi line RF connector for blind mating of board to board or board to cable applications. The Mini Coax connector is mainly used in both RF and IF signal transmission and has a frequency range from DC to 2.5 GHz. Due to its compact size and excellent crosstalk features, the Harting Mini Coax backpane connector system is ideal for many high end equipment applications.Dielectric withstand voltage ≤1000 V for 60s Power 40W at 2.5GHz Temperature range -55 to +125 °C Liquid crystal polymer moulding 500 Mating cycles ### Harting 底板连接器
贸泽:
Power to the Board mini coax straight
艾睿:
If you are in need of a connector that can provide a parallel serial bus connection, look no further than the mini coaxial module 07111000024 backplane connector from Harting. This F connector has 8signal / 16ground contacts that are plated with gold/nickel. It has a female type gender. This is a 5-row connector. It has a straight body orientation. This product is 31.05 mm long, 18.44 mm tall and 14.9 mm deep. This backplane connector has an operating temperature of -55 to 125 °C. It uses the solder termination method. 07111000024 is housed in liquid crystal polymer.
Allied Electronics:
Connector backplane module 8-pin
