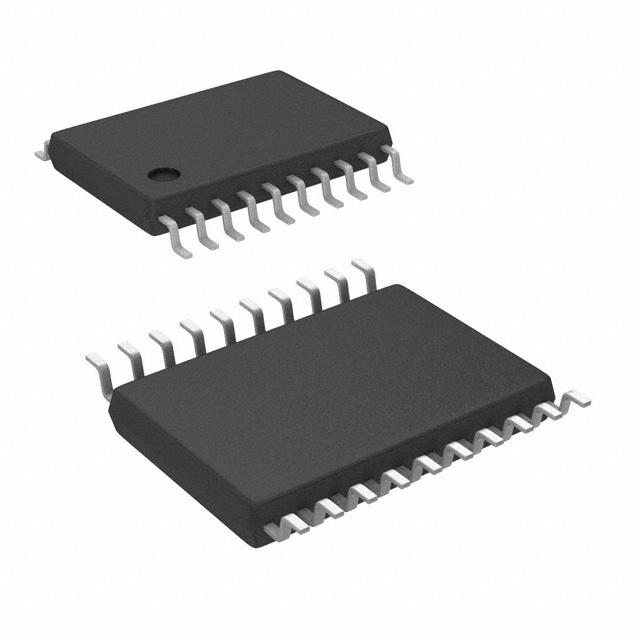

74LVC240ADTR2G

Buffer/Line Driver 8CH Inverting 3-ST CMOS 20Pin TSSOP T/R

The 74LVC240A is a high performance, inverting octal buffer operating from a 1.2 to 3.6 V supply. High impedance TTL compatible inputs significantly reduce current loading to input drivers while TTL compatible outputs offer improved switching noise performance. A V specification of 5.5 V allows 74LVC240A inputs to be safely driven from 5 V devices. The 74LVC240A is suitable for memory address driving and all TTL level bus oriented transceiver applications.Current drive capability is 24mA at the outputs. The Output EnableOEbar input, when HIGH, disables the outputs by placing them in a HIGH Z condition.

Features

---

 |

.

Designed for 1.2 V to 3.6 V VCC Operation

.

5 V Tolerant − Interface Capability With 5 V TTL Logic

.

Supports Live Insertion and Withdrawal

.

IOFF Specification Guarantees High Impedance When VCC = 0 V

.

24 mA Output Sink and Source Capability

.

Near Zero Static Supply Current in All Three Logic States 10 µA Substantially Reduces System Power Requirements

.

Latchup Performance Exceeds 250 mA

.

ESD Performance: Human Body Model >2000 V; Machine Model >200 V

.

These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS Compliant
