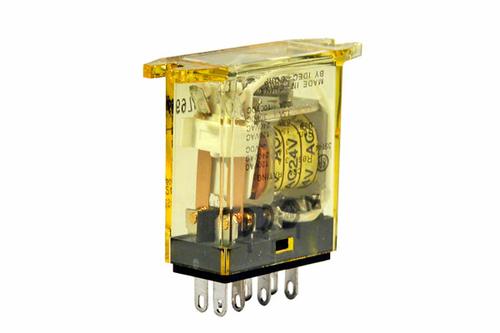

RY2S-UAC24V

IDEC  RY2S-UAC24V..  通用继电器, RY系列, 功率, 无锁定, DPDT, 24 VAC, 3 A

3A, 4PDT Contact Form, General Purpose Miniature Relay

General purpose relay with 3 amp capacity on DPDT and 5 amp capacity on 4PDT, solder terminals and plug-in mounting.

.

* Specifications. Contact Material:** Fine silver gold-plated. ** Contact Resistance:** 50 MΩ max. initial value. ** Operate Time:** 20 mS max. ** Operating Temperature:** -22°F to +158°F -30° to+70°C. ** Frequency Response:** 1800 operations per hour. ** Power Consumption:** AC, approx. 1.1 VA 50 Hz; 1 VA 60 Hz. DC, approx. 0.8 W. UL listed, CSA certified.

Miniature relay with solder termination 4PDT contact.
