RTM3002+RTM-B2210RTM3K-102

数字示波器, RTM3000 Series, 2 通道, 1 GHz, 2.5 GSPS, 40 Mpts, 350 ps

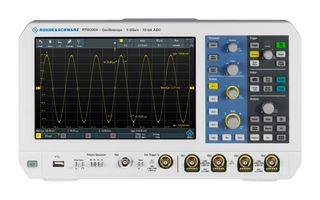

The RTM3K-102 from Rohde & Schwarz is a RTM3000 series, 2 channel digital oscilloscope with RTB-B2210 1GHz bandwidth upgrade. It features 10.1" high resolution 1280 x 800 pixels capacitive touchscreen TFT display with gesture support, 10bit ADC and 40Msample/channel standard, 80Msample interleaved memory depth. The oscilloscope includes a wide range of upgrade options.

.

400Msample segmented acquisition memory optional

.

Maximum sampling rate of 2.5Gsample/s per channel, 5Gsample/s interleaved

.

Waveform update rate is 64000waveforms/s

.

Minimum input sensitivity is 500µV/div

.

10 second boot time

.

I2C, SPI, UART/RS232/ RS422/RS485, CAN, LIN, audio I²S, ARINC, MIL protocols optional

.

Arbitrary waveform and 4bit pattern generator optional

.

Standard digital voltmeter and trigger counter

.

LAN, USB host/device, fast display over Ethernet connectivity

.

Oscilloscope size is 390mm x 220mm x 152mm W x H x D
