8212JN

EBM PAPST  8212JN  轴流风扇, 管轴式, 方形, 接线引脚, 滚珠, 8200J系列, 12 VDC, 80 mm, 38 mm, 78 cu.ft/min, 2.18 m³/min

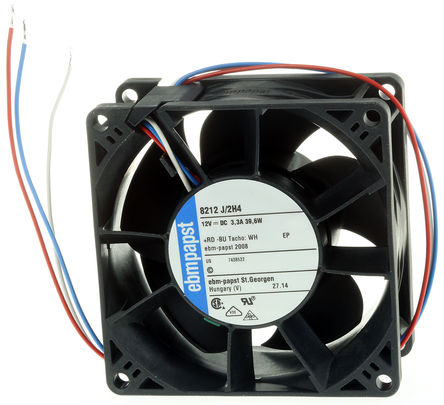

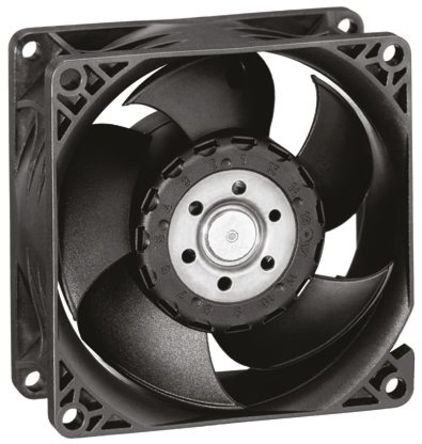

The is a 12VDC standard or basic speed Axial Fan with speed signal, ball bearing and wire leaded power connection. Fibreglass-reinforced plastic PBT housing and fibreglass-reinforced plastic PA impeller. Left direction of rotation looking at rotor, air exhaust over bars direction of air flow, single strands 24AWG, TR 64, bared and tin-plated leads with jet characteristic/rigid curve. The DC axial compact fan is suitable for high air performance with moderate pressure build-up. The flow of air through the fan blades is parallel to the rotation axis.

.

8400RPM Speed rating

.

10W Rated power

.

-20 to 70°C Maximum ambient temperature range

.

Electronic blocking and overload protection

.

Protected against reverse polarity and locking
