MP725-500-1%

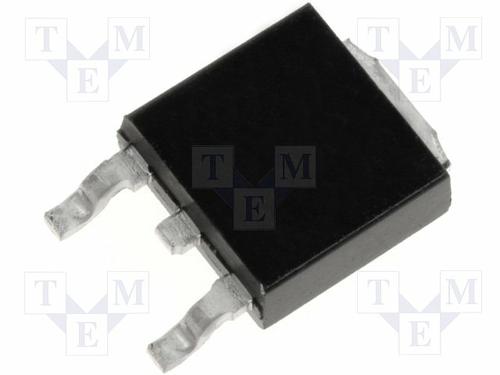

CADDOCK MP725-500-1% SMD Chip Resistor, Thick Film, 500Ω, 200V, TO-252 DPAK, 25W, ± 1%, MP725 Series

**Specifications

**

* Thermal Resistance Rφj-c: 5.0°C/W**

**

* Voltage Rating: 200 VRMS AC**

**

* Non-Inductive Design**

**

* DWV: 1500 VRMS AC, the Resistor Element Is Isolated from the Metal Tab and Mounting Surface**

Temperature Coefficient:

**ΔR taken at +150°C, ref. +25°C**

**0.50 ohm to 1.00K ohm: –20 to +80 ppm/°C**

**0.050 ohm to 0.49 ohm: 0 to +200 ppm/°C**

**0.020 ohm to 0.049 ohm: 0 to +300 ppm/°C**

Soldering Note:

.

* Not compatible with typical lead Pb-Free solder reflow process. During surface mount soldering the soldering temperature profile must not cause the metal tab of this device to exceed 219°C.
