ERZ-V20D361

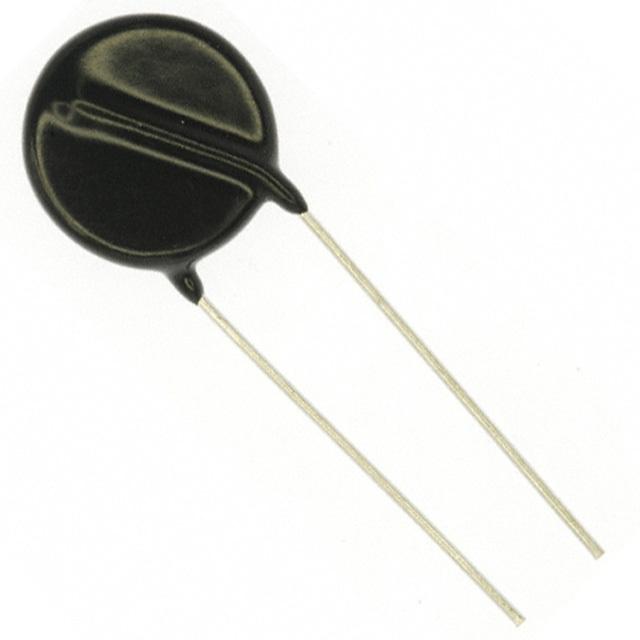

PANASONIC ELECTRONIC COMPONENTS ERZ-V20D361 TVS Varistor, 230Vrms, 300V, ZNR V Series, 595V, Disc 20mm, High Surge Current

变阻器 电路 通孔 圆片式 21.5mm

立创商城:
ERZ-V20D361

得捷:
VARISTOR 360V 10KA DISC 21.5MM

艾睿:
Are you looking for a nonlinear resistor? This ERZ-V20D361 MOV from Panasonic will exceed your needs! This device&s;s clamping current is 100 A and clamping voltage is 595 V. Its maximum surge current is 10000 A. This part has a pitch of 10 mm. This voltage dependent resistor has an operating temperature of -40 to 85 °C. This product comes packaged in bulk, so the parts will be stored loosely. This varistor has a voltage of 360 V. Its capacitance value is 0.0011uF. The maximum AC voltage rating is 230 VAC and the maximum DC voltage rating is 300 VDC. This product is 24.5 mm tall and 6.1 mm deep with a diameter of 21.5 mm.

Chip1Stop:
Var 230VAC/300VDC 10000A 360V Radial Bulk

Verical:
Var 230VAC/300VDC 10000A 360V Radial Bulk

Newark:
# PANASONIC ELECTRONIC COMPONENTS  ERZ-V20D361  TVS Varistor, 230 Vrms, 300 V, ZNR V Series, 595 V, Disc 20mm, High Surge Current

MASTER:
Var 230VAC/300VDC 10000A 360V Radial Bulk

Online Components:
Var 230VAC/300VDC 10000A 360V Radial Bulk

Electro Sonic:
Var 230VAC/300VDC 10000A 360V Radial Bulk
