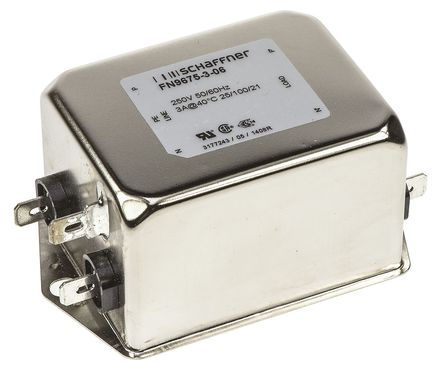

FN9675-3-06

SCHAFFNER  FN9675-3-06  电源线滤波器, 机壳, 电磁干扰/射频干扰, 3 A, 250 VAC, 410 µA, 680 nF, 18 mH

系列 FN 9675单相

设计用于使用差模干扰中的高衰减 90dB，抑制低频率下对称模式或差分模式中的干扰。

高饱和电流，铜合金外壳和接地。

Stock | rated |   | dimensions mm |

---|---|---|---|---

no. | nominal | inductance | L x W x H | connection

176-8870 | 3 A | 18 mH | 89 x 54 x 40 | Terminal Type Faston

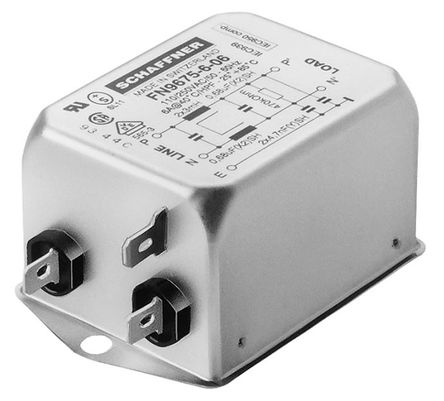

176-8886 | 6 A | 3 mH | 89 x 54 x 40 | Terminal Type Faston

176-8892 | 16 A | 10.2 mH | 126 x 105 x 45 | Screw

Operating voltage: | 250 Vac, 400 Hz at 40 °C

---|---

Test voltage- P / N→T: | 2000 V, 50 Hz, 2 seconds at 25 °C

\- P→N: | 2125 Vdc, 1 min. at 25 °C

Operating frequency: | 0 → 400 Hz at 40 °C

MTBF at 40 °C MIL-HB-217F: | 33,0000 → 52,0000 hours

Operating temperature: | –25 °C → +85 °C DIN 40040 H, P

Flammability classification: | UL 94-V0

Climate class according to IE C 68 | 25 / 085 / 21

### 标准

IE C 950：I 类和 III 类，额外绝缘，TN 和 TT 接地系统，电容 X2，SEV 认证
