FODM3022R2V-NF098
数据手册.pdfON Semiconductor(安森美)
电子元器件分类
FODM3022_NF098: 400V 随机相位双向三端可控硅驱动器 10mA

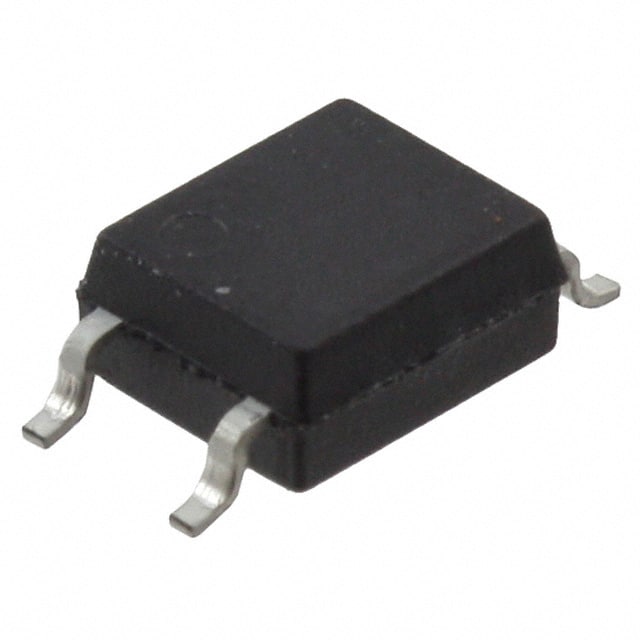

The FODM301X, FODM302X, and FODM305X series consists of a GaAs infrared emitting diode driving a silicon bilateral switch housed in a compact 4-pin mini-flat package. The lead pitch is 2.54mm. They are designed for interfacing between electronic controls and power triacs to control resistive and inductive loads for 115V/240V operations.
Features
---
|
- .
- Compact 4-pin surface mount package 2.4 mm maximum standoff height
- .
- Peak blocking voltage 250V FODM301X 400V FODM302X 600V FODM305X
- .
- Available in tape and reel quantities of 2500.
- .
- Add “NF098” for new construction version with 260°C max. reflow temperature rating
- .
- UL, C-UL and VDE certifications pending
