FS7140-01G-XTP

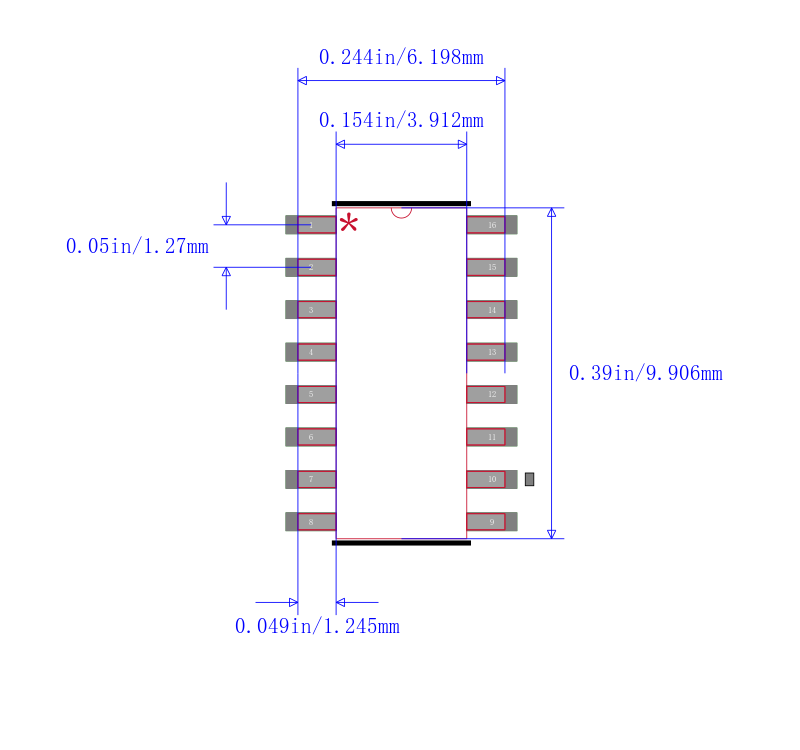

FS7140 系列 I2C 可编程 1-PLL 时钟 - SOIC-16

The FS7140 or FS7145 is a monolithic CMOS clock generator/regenerator IC designed to minimize cost and component count in a variety of electronic systems. Via the I2C-bus interface, the FS7140/45 can be adapted to many clock generation requirements. The length of the reference and feedback dividers, their fine granularity and the flexibility of the post divider make the FS7140/45 the most flexible stand-alone PLL clock generator available.

Features

---

 |

.

Extremely flexible and low-jitter phase locked loop PLL frequency synthesis

.

No external loop filter components needed

.

150 MHz CMOS or 340 MHz PECL outputs

.

Completely configurable via I2C-bus

.

Up to four FS714x can be used on a single I2C-bus

.

3.3 V operation

.

Independent on-chip crystal oscillator and external reference input

.

Very low cumulative jitter
