DS25CP152TSQ/NOPB

DS25CP152TSQ/NOPB

TI(德州仪器) 电子元器件分类

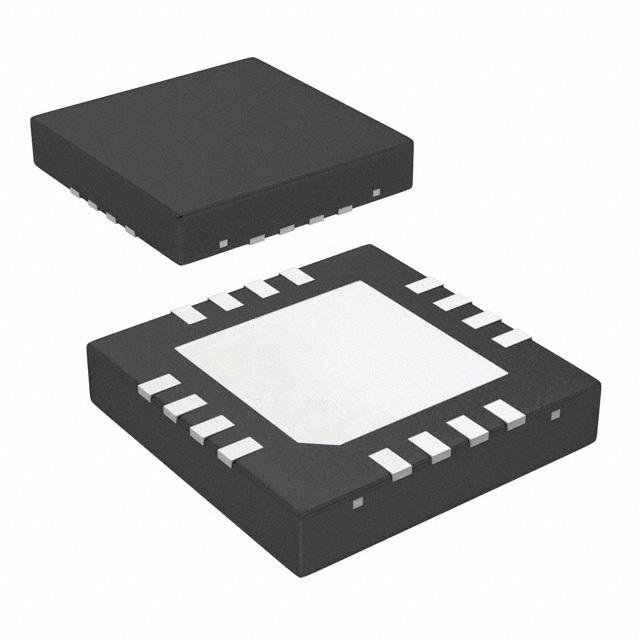

模拟和数字交叉点 IC 3.125 Gbps LVDS 2x2 Crosspoint Switch 16-WQFN -40 to 85

The DS25CP152 is a 3.125 Gbps 2x2 LVDS crosspoint switch optimized for high-speed signal routing and switching over lossy FR-4 printed circuit board backplanes and balanced cables. Fully differential signal paths ensure exceptional signal integrity and noise immunity. The non-blocking architecture allows connections of any input to any output or outputs.

Wide input common mode range allows the switch to accept signals with LVDS, CML and LVPECL levels; the output levels are LVDS. A very small package footprint requires a minimal space on the board while the flow-through pinout allows easy board layout. Each differential input and output is internally terminated with a 100Ω resistor to lower device return losses, reduce component count and further minimize board space.

DS25CP152TSQ/NOPB中文资料参数规格
技术参数

电源电压DC 3.00V min

功耗 211 W

工作温度Max 85 ℃

工作温度Min -40 ℃

电源电压 3V ~ 3.6V

电源电压Max 3.6 V

电源电压Min 3 V

封装参数

安装方式 Surface Mount

引脚数 16

封装 WFQFN-16

外形尺寸

封装 WFQFN-16

物理参数

工作温度 -40℃ ~ 85℃

其他

产品生命周期 Active

包装方式 Tape & Reel TR

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

REACH SVHC版本 2015/06/15

海关信息

ECCN代码 EAR99

DS25CP152TSQ/NOPB引脚图与封装图
DS25CP152TSQ/NOPB引脚图

DS25CP152TSQ/NOPB引脚图

DS25CP152TSQ/NOPB封装图

DS25CP152TSQ/NOPB封装图

DS25CP152TSQ/NOPB封装焊盘图

DS25CP152TSQ/NOPB封装焊盘图
