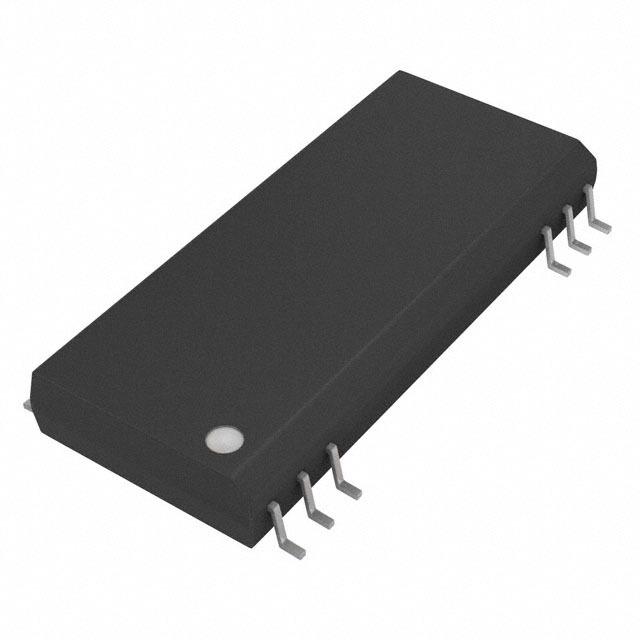

DCP022405U
TI(德州仪器)
主动器件
微型， 2W ，隔离非稳压DC / DC转换器 Miniature, 2W, Isolated UNREGULATED DC/DC CONVERTERS
DESCRIPON
The DCP02 series is a family of 2W, isolated, unregulated DC/DC converters. Requiring a minimum of external components and including on-chip device protection, the DCP02 series provides extra features such as output disable and synchronization of switching frequencies.
FEATURES
• Up To 89% Efficiency
• Thermal Protection
• Device-to-Device Synchronization
• SO-28 Power Density of 106W/in36.5W/cm3
• EN55022 Class B EMC Performance
• UL1950 Recognized Component

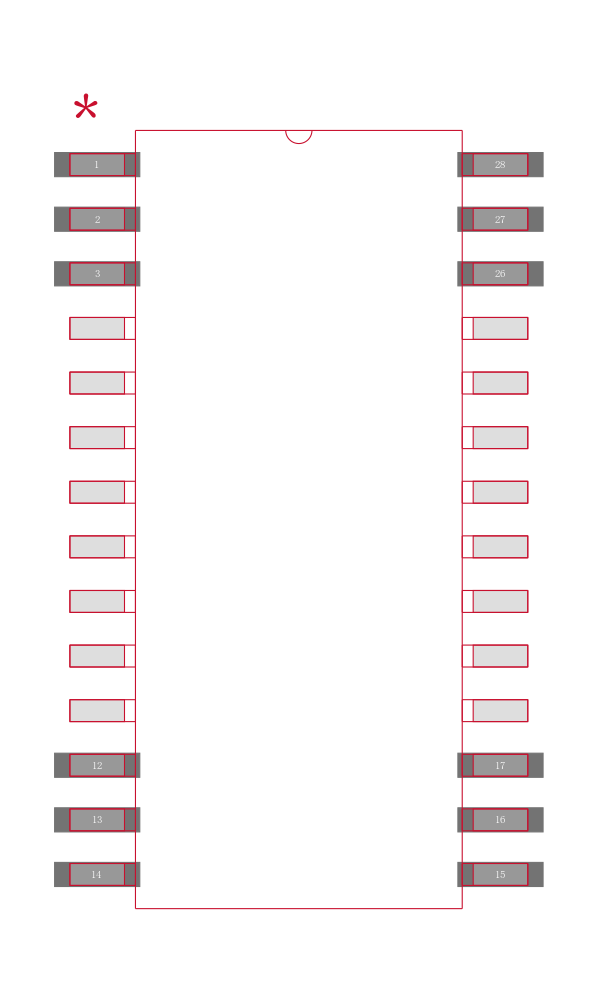

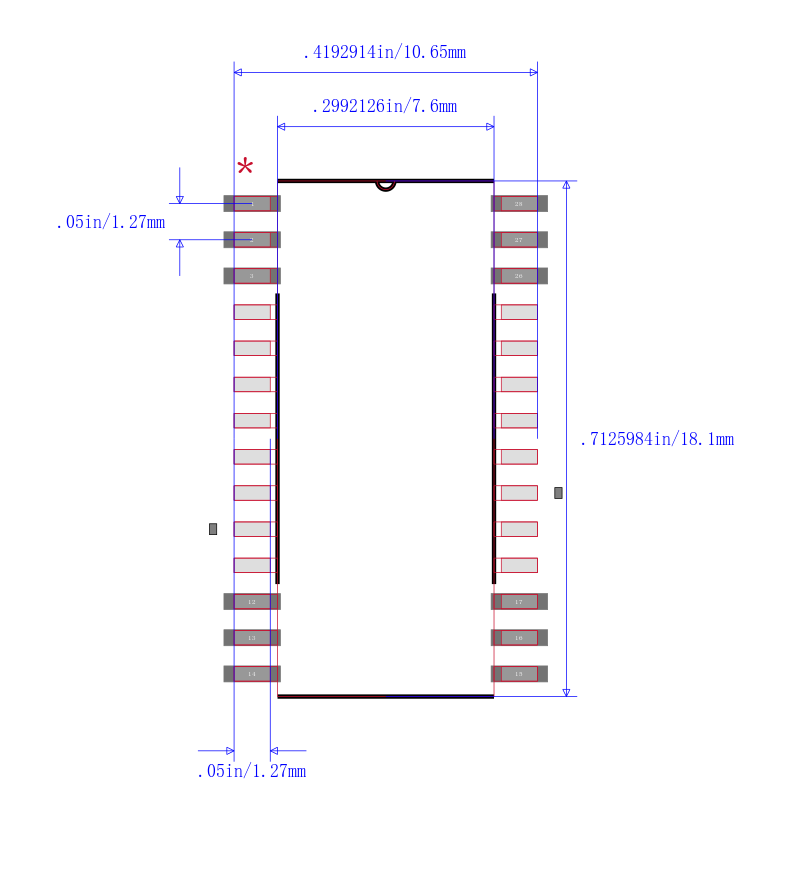

• JEDEC 14-Pin and SO-28 Packages
APPLICATIONS
• Point-of-Use Power Conversion
• Ground Loop Elimination
• Data Acquisition
• Industrial Control and Instrumentation
• Test Equipment
