CAT25020YI-GT3
数据手册.pdf1 - KB ， 2 - KB和4 KB的SPI串行EEPROM CMOS 1-Kb, 2-Kb and 4-Kb SPI Serial CMOS EEPROM
The CAT25020 is a 2-kb SPI Serial CMOS EEPROM device internally organized as 256x8 bits. "s advanced CMOS Technology substantially reduces device power requirements. It features a 16-byte page write buffer and supports the Serial Peripheral Interface SPI protocol. The device is enabled though a Chip Select . In addition, the required bus signalsare a clock input SCK, data input SI and data output SO lines. The input may be used to pause any serial communication with the CAT25020 device. This device features software and hardware write protection, including partial as well as full array protection.
Features
---
|
- .
- 20 MHz 5 V SPI Compatible
- .
- 1.8 V to 5.5 V Supply Voltage Range
- .
- SPI Modes 0,0 & 1,1
- .
- 16-byte Page Write Buffer
- .
- Self-timed Write Cycle
- .
- Hardware and Software Protection
- .
- Block write protection - Protect 1/4, 1/2 or entire EEPROM array
- .
- Low Power CMOS Technology
- .
- 1,000,000 Program/Erase Cycles
- .
- 100 Year Data Retention
- .
- Industrial and Extended Temperature Range
- .

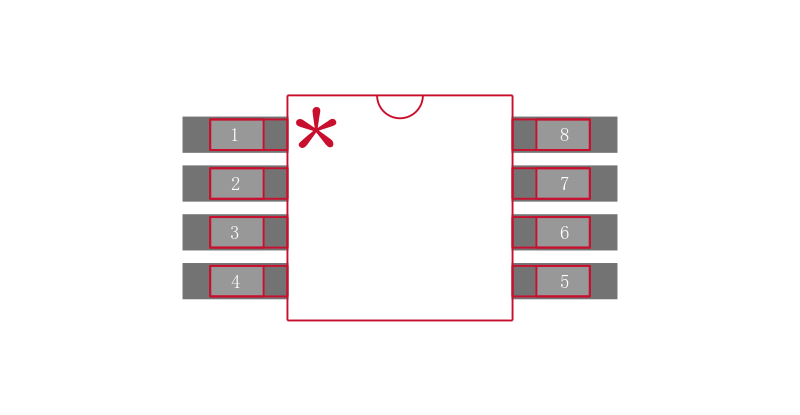

- PDIP, SOIC, TSSOP 8-Lead and TDFN, UDFN 8-Pad Packages
- .
- These Devices are Pb-Free, Halogen Free/BFR Free, and RoHS Compliant
