CD4015BE

TEXAS INSTRUMENTS  CD4015BE  移位寄存器, 串行至并行, 2元件, DIP, 16 引脚, 3 V, 18 V

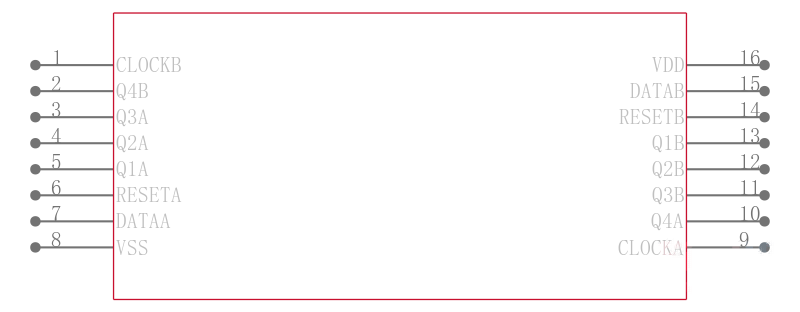

The is a 4-stage CMOS dual static Shift Register consists of two identical, independent, 4-stage serial-input/parallel-output registers. Each register has independent clock and RESET inputs as well as a single serial DATA input. "Q" outputs are available from each of the four stages on both registers. All register stages are D-type, master-slave flip-flops. The logic level present at the DATA input is transferred into the first register stage and shifted over one stage at each positive-going clock transition. Resetting of all stages is accomplished by a high level on the RESET line.

.

Fully static operation

.

Standardized, symmetrical output characteristics

.

Meets all requirements of JEDEC tentative standard no. 13B

.

8 Master-slave flip-flops plus input and output buffering

.

100% Tested for quiescent current at 20V

.

Green product and no Sb/Br
