BQ24166EVM-741
TI(德州仪器)
主动器件

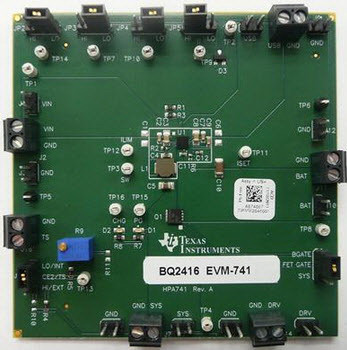

TEXAS INSTRUMENTS BQ24166EVM-741 评估模块, BQ24166EVM-741
The is an Evaluation Module for evaluate the operation and performance of BQ24166, a switch-mode charge management solution for single-cell, Li-ion and Li-polymer batteries used in a wide range of portable applications. The BQ24166 IC integrates a synchronous PWM controller, power MOSFETs, input current sensing, high-accuracy current and voltage regulation.
- .
- Programmable charge current, input current on and VINDPM threshold using jumpers
- .
- Input power connectors for both USB input and AC adapter
- .
- Programmable charge current, input current on and VINDPM threshold using jumpers
- .
- IN operating range of 4.2 to 10V
- .
- USB operating range of 4.2 to 6V
- .
- LED indication for status signals
- .
- Test points for key signals available for testing purposes - easy probe hook-up
