ADG936BCPZ-RL

RF Switch SPDT 0MHz to 2GHz 31dB 20Pin LFCSP EP T/R

Product Details

The ADG936/ADG936-R are wideband analog switches that comprise two independently selectable SPDT switches using a CMOS process to provide high isolation and low insertion loss to 1 GHz. The ADG936 is an absorptive/matched dual SPDT with 50 Ω terminated shunt legs; the ADG936-R is a eflective dual SPDT. These devices are designed such that the isolation is high over the dc to 1 GHz frequency range. They have on-board CMOS control logic, eliminating the need for external controlling circuitry. The control inputs are both CMOS and LVTTL compatible. The low power consumption of these CMOS devices makes them ideally suited for wireless applications and general-purpose high frequency switching.

### Features and Benefits

.

Wideband switch: −3 dB @ 4 GHz

.

ADG936 Absorptive Dual SPDT

.

ADG936-R Reflective Dual SPDT

.

High Off Isolation 36 dB @ 1 GHz

.

Low Insertion Loss 0.9 dB dc to 1 GHz

.

Single 1.65 to 2.75 V Power Supply

.

CMOS/LVTTL Control Logic

.

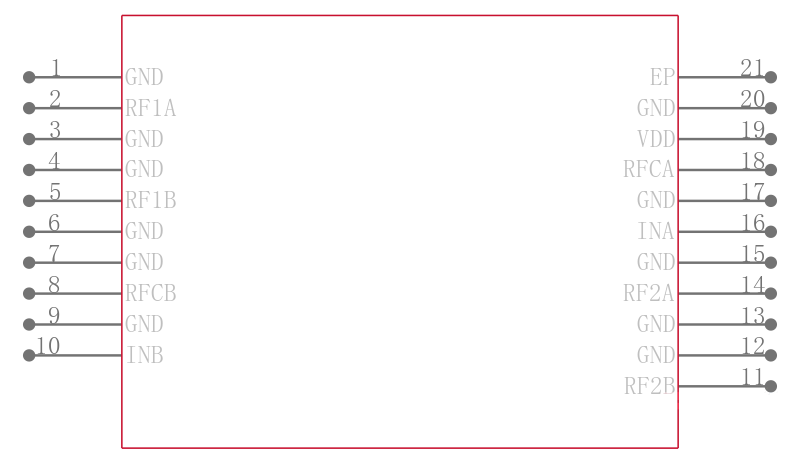

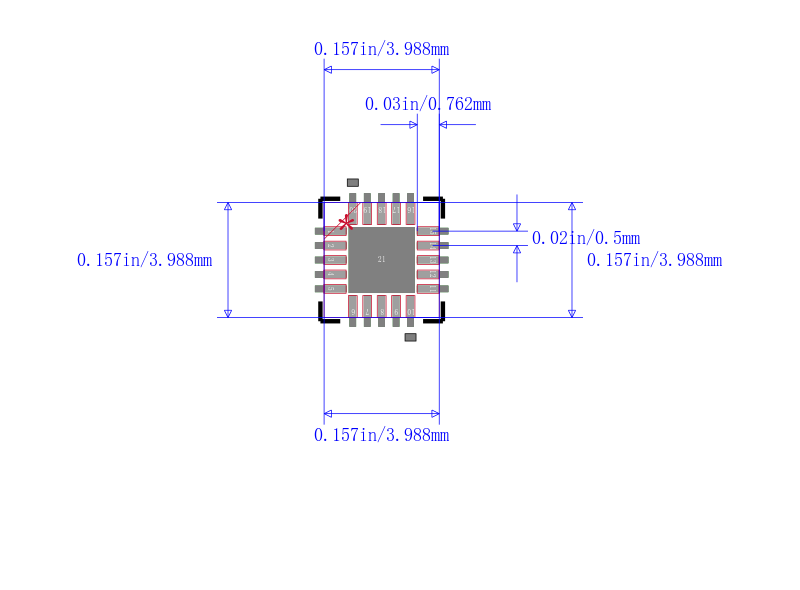

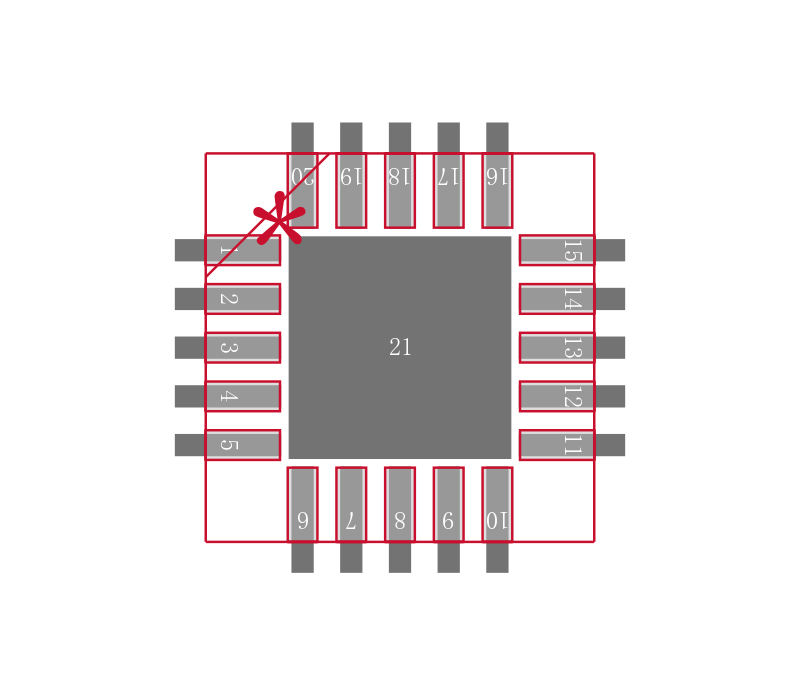

20-lead TSSOP and 4 mm × 4 mm LFCSP Package

.

Low Power Consumption 1 µA max
