8403801CA

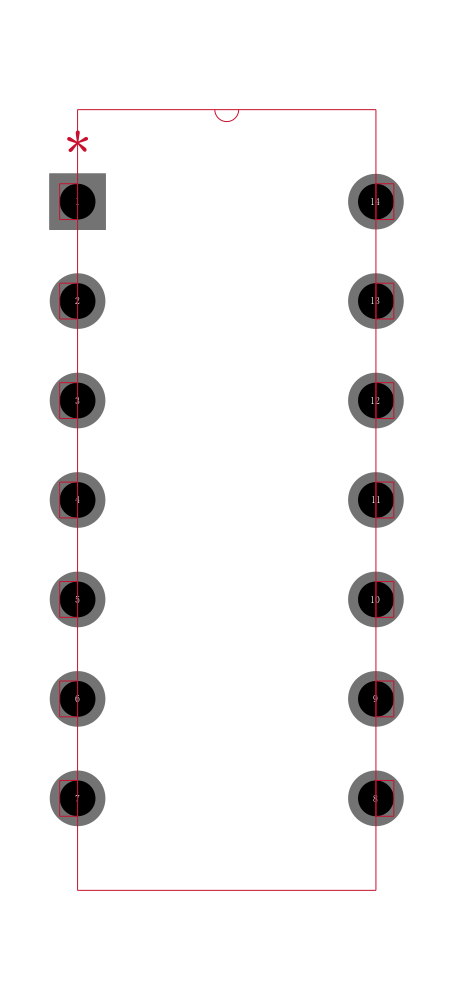

三路 3 输入正与非门 14-CDIP -55 to 125

description/ordering information

The ’HC10 devices contain three independent 3-input NAND gates. They perform the Boolean function Y = A • B • C or Y = A + B + C in positive logic.

● Wide Operating Voltage Range of 2 V to 6 V

● Outputs Can Drive Up To 10 LSTTL Loads

● Low Power Consumption, 20-µA Max ICC

● Typical tpd = 9 ns

● ±4-mA Output Drive at 5 V

● Low Input Current of 1 µA Max

立创商城:
8403801CA

艾睿:
Thanks to Texas Instruments and their 8403801CA logic gates, you can simplify your circuit down to a fundamental level. This gate has a minimum operating temperature of -55 °C and a maximum of 125 °C. This device comes in tube packaging. This device has a typical operating supply voltage of 5 V. Its minimum operating supply voltage of 2 V, while its maximum is 6 V.

安富利:
NAND Gate 3-Element 3-IN CMOS 14-Pin CDIP Tube

Chip1Stop:
NAND Gate 3-Element 3-IN CMOS 14-Pin CDIP Tube

Verical:
NAND Gate 3-Element 3-IN CMOS 14-Pin CDIP Tube

罗切斯特:
NAND Gate 3-Element 3-IN CMOS 14-Pin CDIP Tube
