2 位置 3.5 mm 通孔 直角 插头 插头 带封闭端

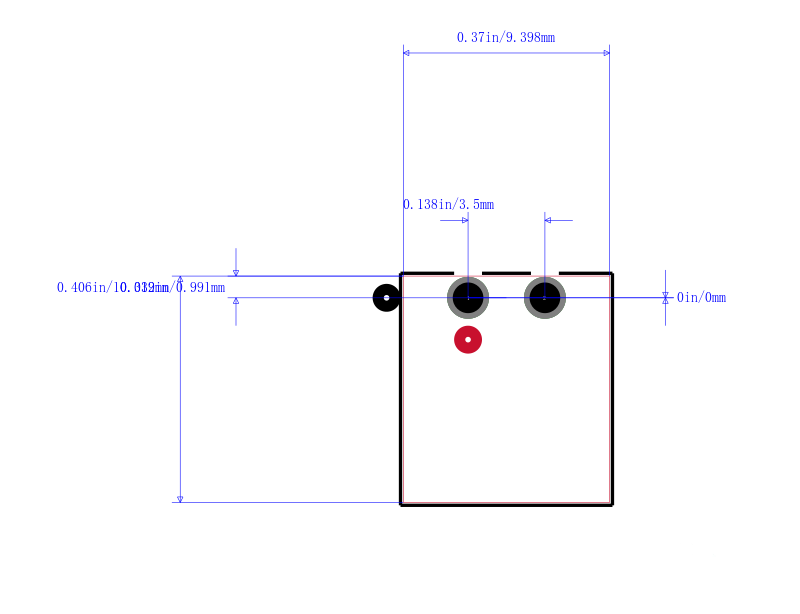

The from Wago is a light gray colour, 2-pole male header for PCBs with 3.5mm 0.138inch pin spacing and 1mm x 1mm angled solder pin. It is 100% protected against mismating with closed ends, only mating halves with the same pole number can be connected together. The connector has tin plated electrolytic copper Ecu contacts and polyamide 66 PA 66 insulation. It has 0.011MJ fire load, 0.624g weight and 9.4mm 0.37inch x 12.3mm 0.484inch x 10.3mm 0.406inch dimension W x H x D. Coding options are available. The connector has ABS, BV, CCA, CSA, DNV GL, KEMA, UR E45171 Underwriters Laboratories Inc and LR approvals.
- .
- 1mm x 1mm pin cross section allows nominal current up to 10A
- .

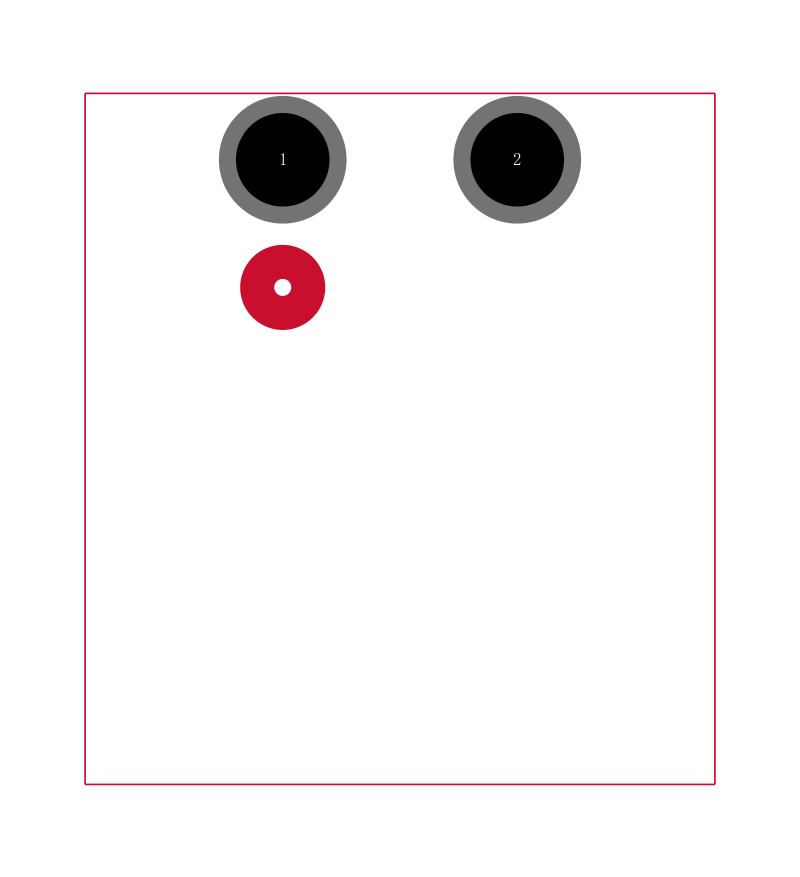

- Horizontal PCB mounting and solder pin length of 3.8mm
- .
- Ratings per IEC/EN 60664-1 standards and flammability class per UL94 V0
- .
- Robust housing, shock and vibration resistant
- .
- Rated impulse voltage of 2.5KV III/3, 2.5KV III/2 and 2.5KV II/2
- .
- Rated voltage of 160V III/2, 320V II /2 and rated current of 10A
- .
- Limit temperature range from -60°C to 100°C
