SBR80520LT3G
数据手册.pdf表面贴装肖特基整流电源 Surface Mount Schottky Power Rectifier

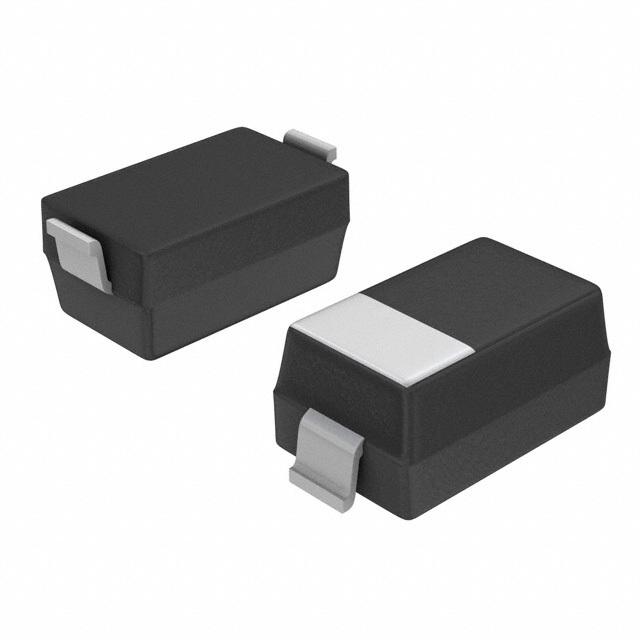

The Schottky Rectifier employs the Schottky Barrier principle with a barrier metal that produces optimal forward voltage drop-reverse current tradeoff. It is ideally suited for low voltage, high frequency rectification, or as free wheeling and polarity protection diodes in surface mount applications, where compact size and weight are critical to the system. This package provides an alternative to the leadless 34 MELF style package.
Features
---
|
- .
- Guardring for Stress Protection
- .
- Very Low Forward Voltage 0.38 V Max @ 0.5 A, 25 C
- .
- 125 C Operating Junction Temperature
- .
- Epoxy Meets UL94, VO at 1/8"
- .
- Package Designed for Optimal Automated Board Assembly
Mechanical Characteristics
- .
- Reel Options:
MBR0520LT1 = 3,000 per 7" reel/8 mm tape.
MBR0520LT3 = 10,000 per 13" reel/8 mm tape.
- .
- Device Marking: B2
- .
- Polarity Designator: Cathode Band
- .
- Weight: 11.7 mg approximately
- .
- Case: Epoxy, Molded
- .
- Finish: All External Surfaces Corrosion Resistant and Terminal Leads are Readily Solderable
- .
- Lead and Mounting Surface Temperature for Soldering Purposes: 260 °C Max. for 10 Seconds
- .
- All Packages are Pb-Free
- .
- SBR8 Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC-Q101 Qualified and PPAP Capable
