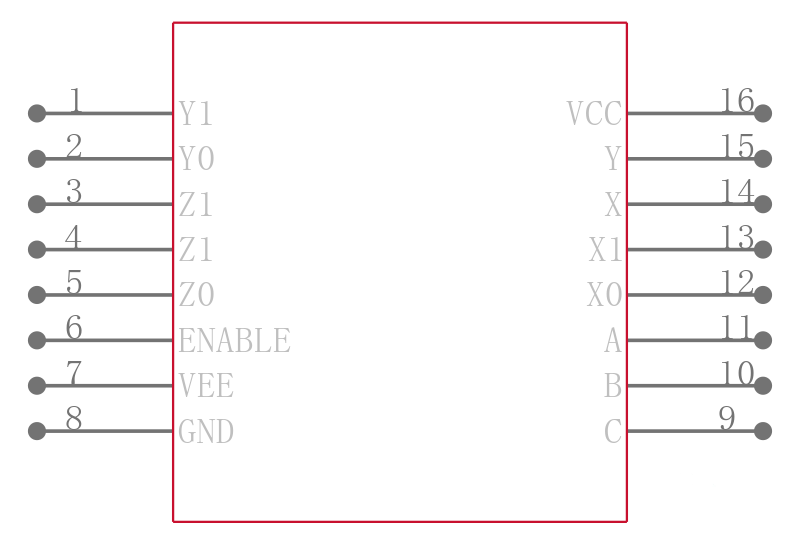

MC74LVX4053DTR2G
数据手册.pdf2通道模拟开关
High-Performance Silicon-Gate CMOS The MC74LVX4053 utilizes silicon-gate CMOS technology to achieve fast propagation delays, low ON resistances, and low OFF leakage currents. This analog multiplexer/demultiplexer controls analog voltages that may vary across the complete power supply range from V The LVX4053 is similar in pinout to the LVX8053, HC4053A, and the metal-gate MC14053B. The Channel-Select inputs determine which one of the Analog Inputs/Outputs is to be connected, by means of an analog switch, to the Common Output/Input. When the Enable pin is HIGH, all analog switches are turned off. The Channel-Select and Enable inputs are compatible with standard CMOS outputs; with pull-up resistors they are compatible with LSTTL outputs. This device has been designed so that the ON resistance R is more linear over input voltage than R of metal-gate CMOS analog switches.
Features
---
|
- .
- Fast Switching and Propagation Speeds
- .
- Low Crosstalk Between Switches
- .
- Analog Power Supply Range VCC \- GND = 2.0 to 6.0 V
- .
- Digital Control Power Supply Range VCC \- GND = 2.0 to 6.0 V
- .
- Improved Linearity and Lower ON Resistance Than Metal-Gate Counterparts
- .
- Low Noise
- .
- Designed to Operate on a Single Supply with VEE = GND, or Using Split Supplies up to +/- 3.3 V
- .
- Pb-Free Packages are Available
