LP2985A-50DBVR
TI(德州仪器)
主动器件

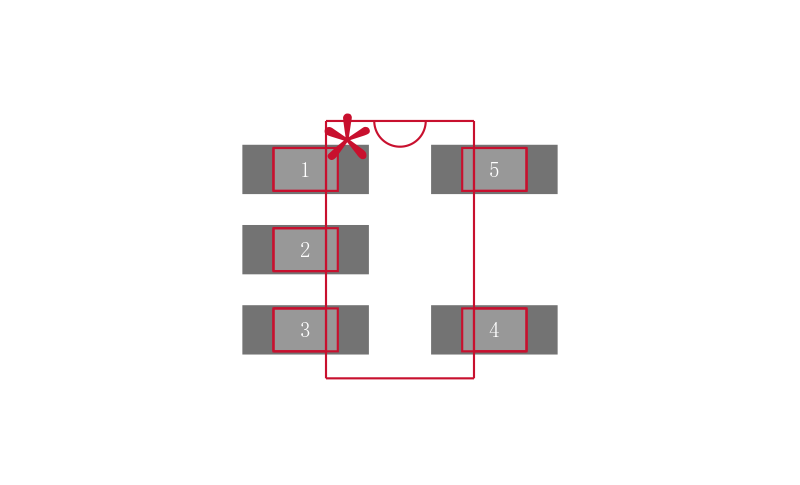

TEXAS INSTRUMENTS LP2985A-50DBVR 固定电压稳压器, LDO, 2.2V至16V, 280mV压差, 5V输出, 150mA输出, SOT-23-5
The is a 5V fixed output low-noise low-dropout LDO Linear Regulator with an output tolerance of 1% and is capable of delivering 150mA continuous load current. Standard regulator features such as overcurrent and overtemperature protection are included. A PNP pass element allows a typical dropout of 280mV at 150mA load current and 7mV at 1mA load. The use of a vertical PNP process allows for quiescent currents that are considerably lower than those associated with traditional lateral PNP regulators.
- .
- Low quiescent current - 850µA at full load at 150mA
- .
- 0.01µA Shutdown current
- .
- Low noise - 30µVrms with 10nF bypass capacitor
- .
- Stable with low-ESR capacitors including ceramic
- .
- Overcurrent and thermal protection
- .
- High peak-current capability
- .
- ESD protection exceeds JESD 22 - 2000V Human-body model A114-A, 200V Machine model A115-A
