LP5907MFX-3.0/NOPB
TEXAS INSTRUMENTS LP5907MFX-3.0/NOPB 固定电压稳压器, LDO, 2.2V至5.5V, 250mV压差, 3V输出, 250mA输出, SOT-23-5

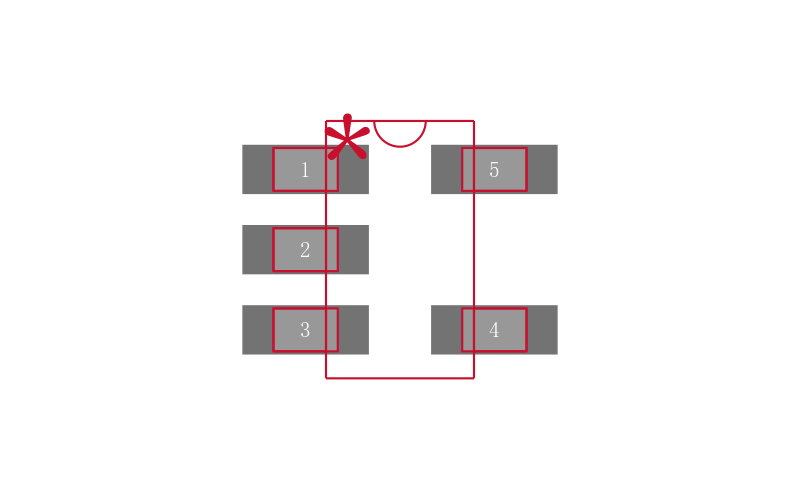

The is a single channel low dropout LDO linear regulator with fixed output for RF and analogue circuits in 5 pin SOT-23 package. This regulator provides ultra low noise, high PSRR, low quiescent current and low line or load transient response. Using new innovative design techniques, the LP5907 offers class leading noise performance without noise bypass capacitor and ability for remote output capacitor placement. The device is designed to work with 1µF input and 1µF output ceramic capacitor no separate noise bypass capacitor is required. The single 1µF ceramic output capacitor can be placed up to 10cm away from the LP5907 device.
- .
- Fixed output voltage of 3V
- .
- Input voltage range from 2.2V to 5.5V
- .
- Output current of 250mA
- .
- Low dropout voltage of 250mV at 250mA output current
- .
- Zero quiescent current when disabled < 1µA and very low quiescent current when enabled 12µA
- .
- Thermal overload and short circuit protection
- .
- Low output voltage noise of less than 10µVrms
- .
- PSRR of 82dB at 1KHz and start-up time of 80µs
- .
- Output voltage tolerance of ±2%
- .
- Operating temperature range from -40°C to 125°C
This device has limited built-in ESD protection. The leads should be shorted or device should be placed in conductive foam during storage or handling to prevent electrostatic damage to MOS gates.
