1N5263B-T50R
数据手册.pdfON Semiconductor(安森美)
电子元器件分类
Zener 56V 0.5W1/2W 5%
General Data Applicable to all series in this group.
Features
---
|
- .
- Complete Voltage Range - 1.8 to 200 Volts
- .
- DO-204AH Package - Smaller than Conventional DO-204AA Package
- .
- Double Slug Type Construction
- .
- Metallurgically Bonded Construction
Mechanical Characteristics:
- .

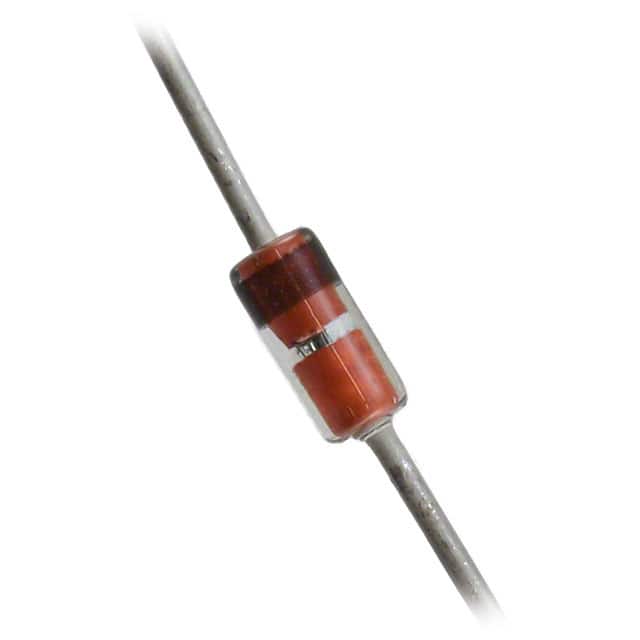

- CASE: Double slug type, hermetically sealed glass
- .
- MAXIMUM LEAD TEMPERATURE FOR SOLDERING PURPOSES: 230?C, 1/16", from case for 10 seconds
- .
- FINISH: All external surfaces are corrosion resistant with readily solderable leads
- .
- POLARITY: Cathode indicated by color band. When operated in zener mode, cathode will be positive with respect to anode
- .
- MOUNTING POSITION: Any
- .
- WAFER FAB LOCATION: Phoenix, Arizona
- .
- ASSEMBLY/TEST LOCATION: Seoul, Korea
