TLV70711PDQNT

具有使能和主动输出放电功能的 200mA、低 IQ、低压降稳压器 4-X2SON -40 to 125

Description

The TLV707 series TLV707 and TLV707P of low dropout linear regulators LDOs are low quiescent current devices with excellent line and load transient performance for power-sensitive applications. These devices provide a typical accuracy of 0.5%. All versions have thermal shutdown and overcurrent protection for safety.

Features

• 0.5% Typical Accuracy

• Supports 200-mA Output

• Low IQ: 25 μA

• Fixed-Output Voltage Combinations Possible from 0.85 V to 5.0 V1

• High PSRR:

   – 70 dB at 100 Hz

   – 50 dB at 1 MHz

• Stable With Effective Capacitance of 0.1 μF2

• Thermal Shutdown and Overcurrent Protection

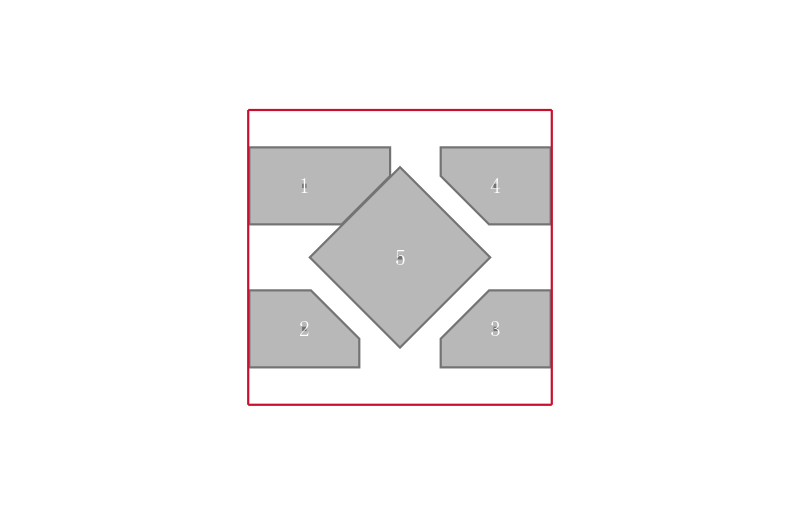

• Package: 1-mm × 1-mm DQN X2SON

1 For all available voltage options, see the orderable addendum at the end of the data sheet.

2 See Mechanical, Packaging, and Orderable Information for more details.

Applications

• Smart Phones and Wireless Handsets

• Gaming and Toys

• WLAN and Other PC Add-On Cards

• TVs and Set-Top Boxes

• Wearable Electronics
