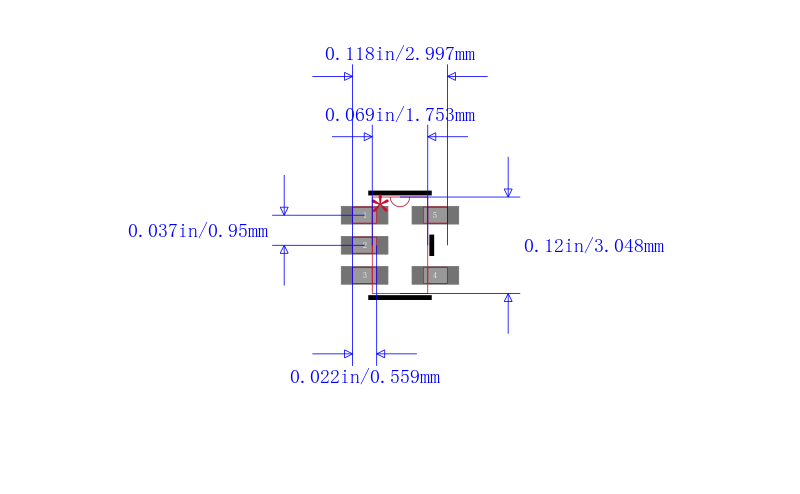

TL431AQDBVRQ1

可调式精密并联稳压器 ADJUSTABLE PRECISION SHUNT REGULATOR

description

The TL431 is a three-terminal adjustable shunt regulator with specified thermal stability over applicable automotive temperature ranges. The output voltage can be set to any value between Vref approximately 2.5 V and 36 V, with two external resistors see Figure 17. This device has a typical output impedance of 0.2 Ω. Active output circuitry provides a sharp turn-on characteristic, making this device an excellent replacement for Zener diodes in many applications, such as onboard regulation, adjustable power supplies, and switching power supplies.

Qualified for Automotive Applications

Operation From −40°C to 125°C

Reference Voltage Tolerance at 25°C

  − 1%...A Grade

  − 0.5%...B Grade

Typical Temperature Drift

  − 14 mV Q Temp

Low Output Noise

0.2-ΩTypical Output Impedance

Sink-Current Capability = 1 mA to 100 mA

Adjustable Output Voltage = Vrefto 36 V
