TLC3702QDRQ1
双通道，微LinCMOSâ ?? ¢电压比较器 DUAL MICROPOWER LinCMOS⢠VOLTAGE COMPARATORS

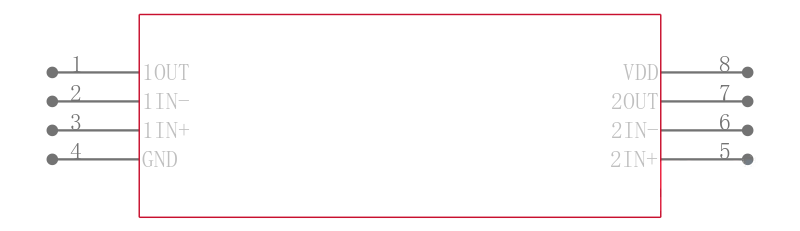

DESCRIPON
The TLC3702-Q1 consists of two independent micropower voltage comparators designed to operate from a single supply and be compatible with modern HCMOS logic systems. They are functionally similar to the LM339 but use one-twentieth of the power for similar response times. The push-pull CMOS output stage drives capacitive loads directly without a power-consuming pullup resistor to achieve the stated response time. Eliminating the pullup resistor not only reduces power dissipation, but also saves board space and component cost. The output stage is also fully compatible with TTL requirements.
FEATURES
• Qualified for Automotive Applications
• ESD Protection Exceeds 2000 V Per MIL-STD-883, Method 3015; Exceeds 100-V Machine Model C = 200 pF, R = 0; Exceeds 1500-V Charged Device Model C = 200 pF, R = 0
• Push-Pull CMOS Output Drives Capacitive Loads Without Pullup Resistor, IO = ± 8 mA
• Very Low Power . . . 100 μW Typ at 5 V
• Fast Response Time . . . tPLH = 2.7 μs Typ With 5-mV Overdrive
• Single-Supply Operation . . . 3 V to 16 V
• On-Chip ESD Protection
