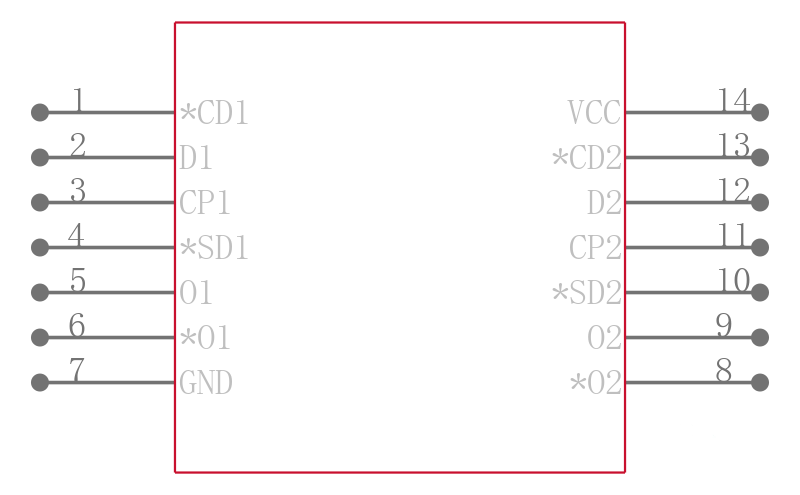

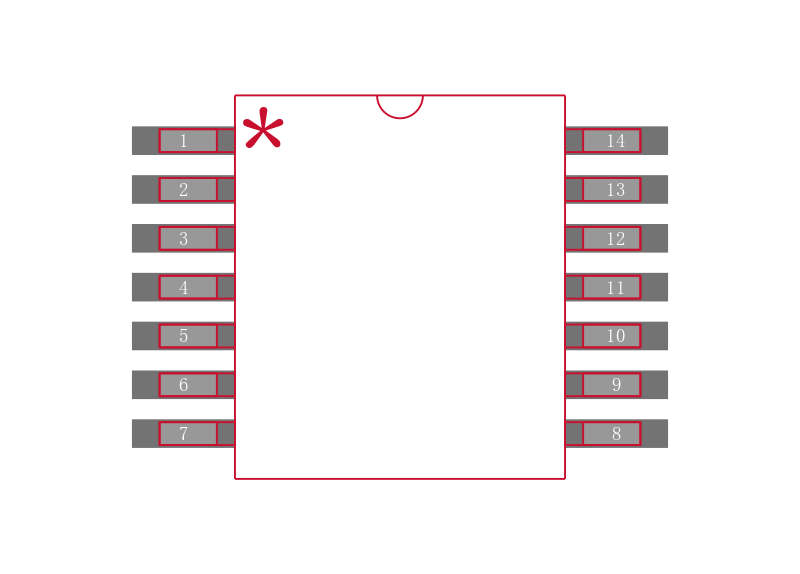

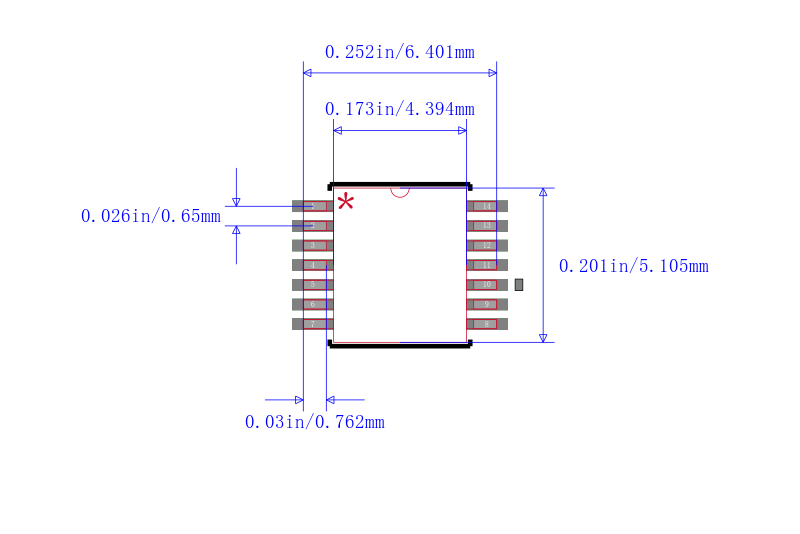

MC74LCX74DTR2

低电压CMOS双D型触发器，具有5 V容限输入 Low-Voltage CMOS Dual D-Type Flip-Flop With 5 V−Tolerant Inputs

Low−Voltage CMOS Dual D−Type Flip−Flop With 5 V−Tolerant Inputs

The MC74LCX74 is a high performance, dual D−type flip−flop with asynchronous clear and set inputs and complementary O, O outputs. It operates from a 2.3 to 3.6 V supply. High impedance TTL compatible inputs significantly reduce current loading to input drivers while TTL compatible outputs offer improved switching noise performance. A VI specification of 5.5 V allows MC74LCX74 inputs to be safely driven from 5.0 V devices.

Features

• Designed for 2.3 V to 3.6 V VCC Operation

• 5.0 V Tolerant Inputs − Interface Capability With 5.0 V TTL Logic

• LVTTL Compatible

• LVCMOS Compatible

• 24 mA Balanced Output Sink and Source Capability

• Near Zero Static Supply Current in All Three Logic States 10 µA

  Substantially Reduces System Power Requirements

• Latchup Performance Exceeds 500 mA

• ESD Performance: Human Body Model >2000 V

                          Machine Model >200 V

• Pb−Free Packages are Available

.
