UC37131DG4

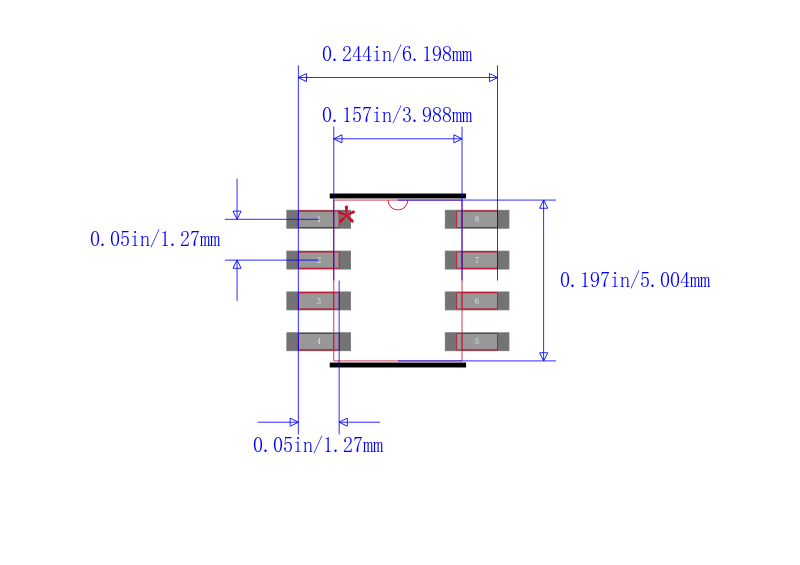

Power Switch Lo Side 0.3A 8Pin SOIC Tube

DESCRIPON

The UC37131, UC37132 and UC37133 are a family of smart power switches which can drive resistive or inductive loads from the high side or low side.

The UC37132 is available in 14 pin DIP, 16 pin SOIC, or 20 pin CLCC packages and can accommodate both low side load to VCC or high side load to GND configurations. The UC37131 and UC37133 are exclusively for a low side or a high side configuration respectively and both are available in an 8 pin package. Both high side and low side configurations provide high current switching with low saturation voltages which can drive resistive or inductive loads.

FEATURES

• 300mA Continuous Output Current

• Low Side or High Side Switch Configuration

• 8V to 65V Operation

• Overload and Short Circuit Protection

• Power Interruption Protection

• +6V Regulated Voltage

• 2mA Quiescent Current

• Programmable Overcurrent and Power Interruption Protection

• 1% to 30% Programmable Input Comparator Hysteresis on UC37132

• Low and High Side Internal High Current Clamps When Driving Inductive Loads
