UC3823NG4

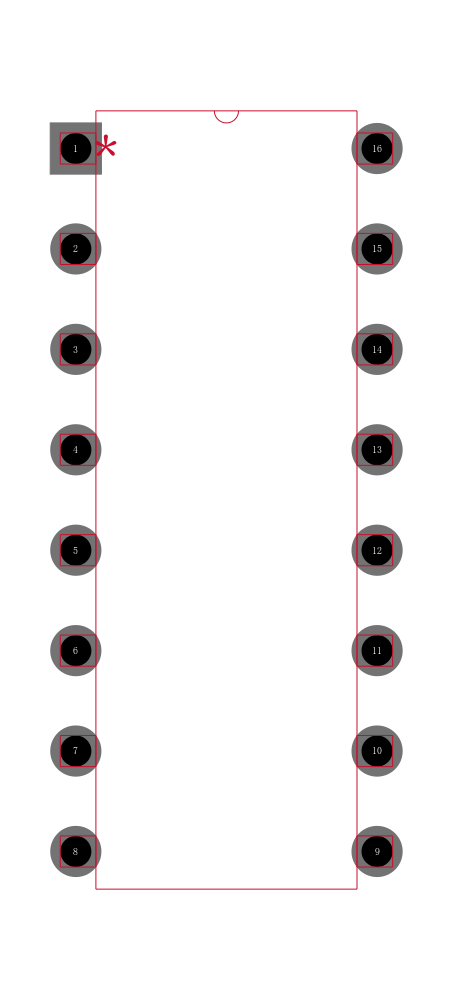

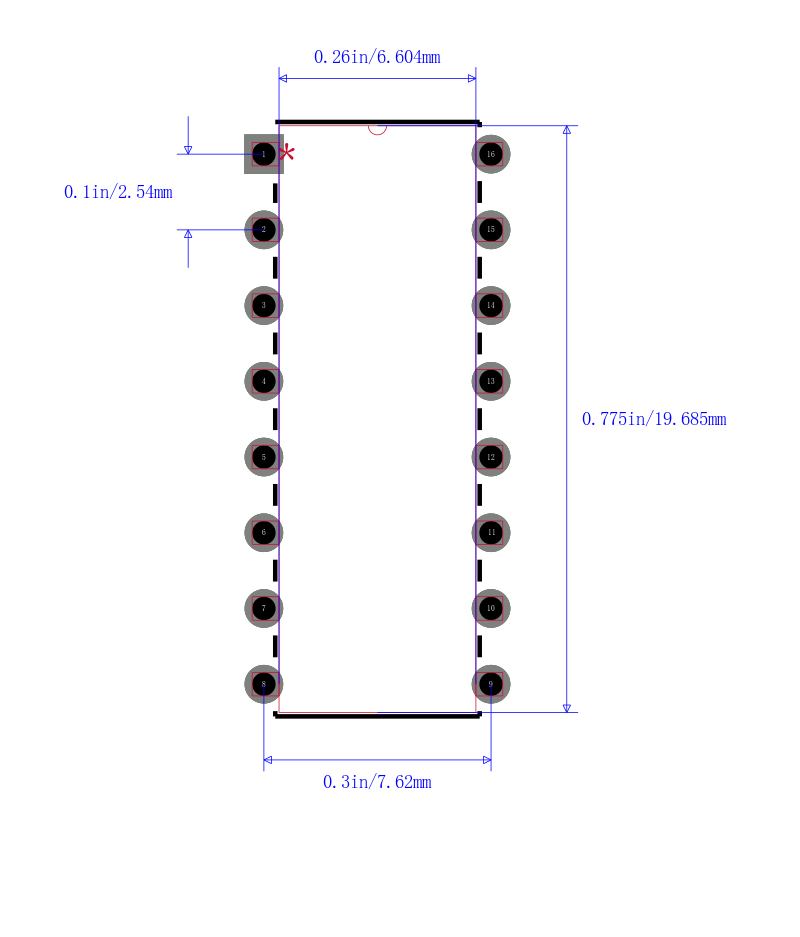

TEXAS INSTRUMENTS  UC3823NG4  控制器, PWM, 30V-10V电源, 1 MHz, 5.2V/200mA输出, DIP-16

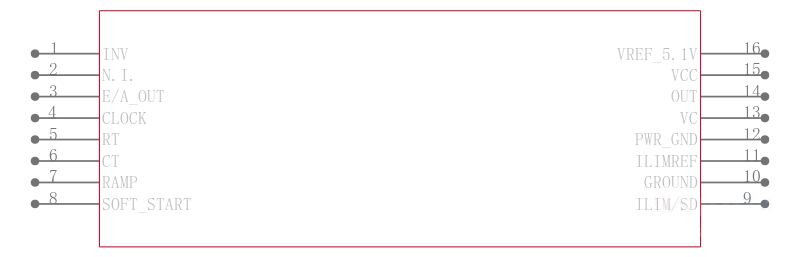

The is a high speed Pulse Width Modulation PWM Controller optimized for high frequency switched mode power supply applications. Particular care was given to minimizing propagation delays through the comparators and logic circuitry while maximizing bandwidth and slew rate of the error amplifier. This controller is designed for use in either current-mode or voltage-mode systems with the capability for input voltage feed-forward. Protection circuitry includes a current limit comparator, a TTL compatible shutdown port and a soft start pin which will double as a maximum duty cycle clamp. The logic is fully latched to provide jitter free operation and prohibit multiple pulses at the output. An under-voltage lockout section with 800mV of hysteresis assures low start up current. During under-voltage lockout, the output is high impedance. The current limit reference pin 11 is a DC input voltage to the current limit comparator.

.

Compatible with voltage or current-mode topologies

.

50ns Propagation delay to output

.

High current totem pole output 1.5A peak

.

Wide bandwidth error amplifier

.

Fully latched logic with double pulse suppression

.

Pulse-by-pulse current limiting

.

Under-voltage lockout with hysteresis

.

1.1mA Low start up current

.

5.1V ±1% Trimmed bandgap reference

.

Green product and no Sb/Br
