UHE1J330MED
数据手册.pdfNichicon(尼吉康)
被动器件
HE 系列 33 uF 63 V 105°C Ø6.3 x 11mm LS=2.5mm 径向 铝 电解电容

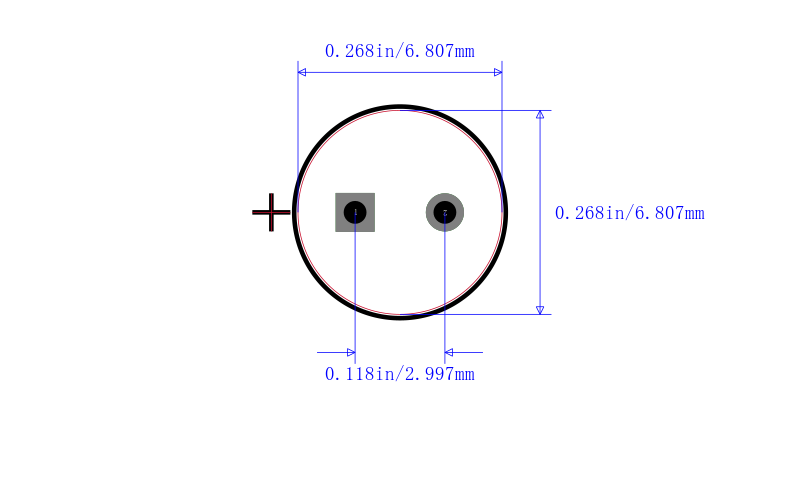

This electrolytic aluminum capacitor from has a relatively high equivalent series resistance which allows it to generate high heat for a given current level. It can withstand a voltage of 63 VDC. This aluminum electrolytic capacitor has a maximum operating temperature of 105 °C. Its leakage current is 20.79@2Min μA. The UHE1J330MED aluminum electrolytic capacitor has a radial termination style. Its capacitance value is 33uF. This product is 11 mm tall with a diameter of 6.3 mm. It has a tolerance of 20%. This part has a lead diameter of 0.5 mm and a pitch of 2.5 mm.
