TUSB546-DCIRNQT
TI(德州仪器)
电子元器件分类

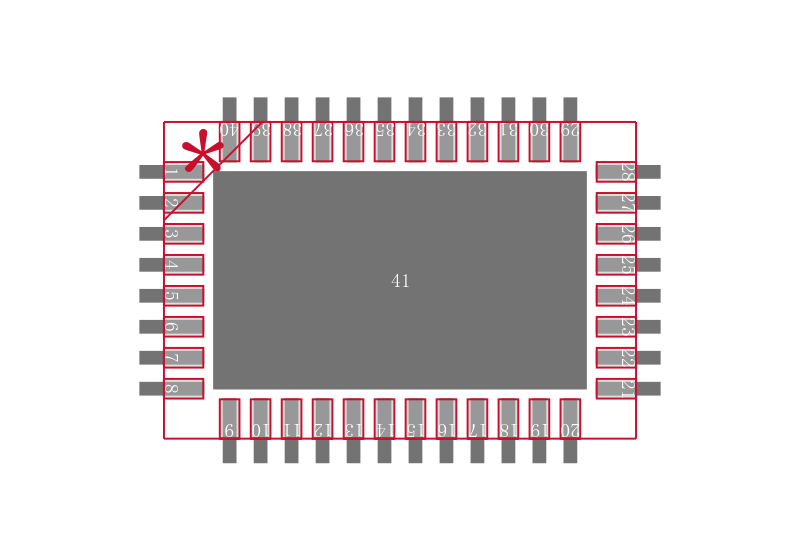

接口, USB, USB C型协议线性转接驱动器, USB 3.1, 3 V, 3.6 V, WQFN, 40 引脚
The TUSB546-DCI is a VESA USB Type-C™ Alt Mode redriving switch supporting USB 3.1 data rates up to 5 Gbps and DisplayPort 1.4 up to 8.1 Gbps for downstream facing port Host. The device is used for configurations C, D, E, and F from the VESA DisplayPort Alt Mode on USB Type-C Standard Version 1.1. This protocol-agnostic linear redriver is also capable of supporting other USB Type-C Alt Mode interfaces.
The TUSB546-DCI provides several levels of receive linear equalization to compensate for cable and board trace loss due to inter symbol interference ISI. Operates on a single 3.3 V supply and comes in a commercial temperature range and industrial temperature range.
