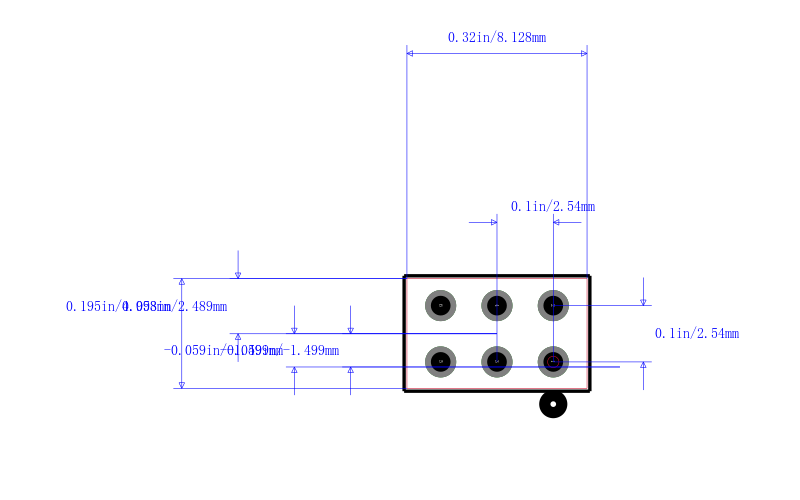

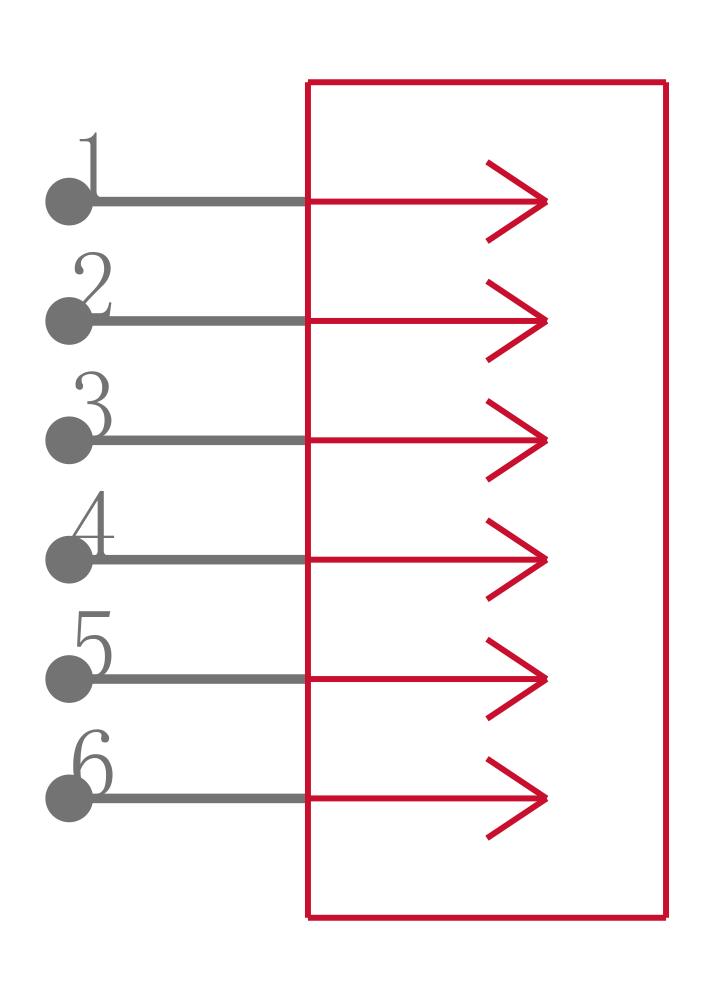

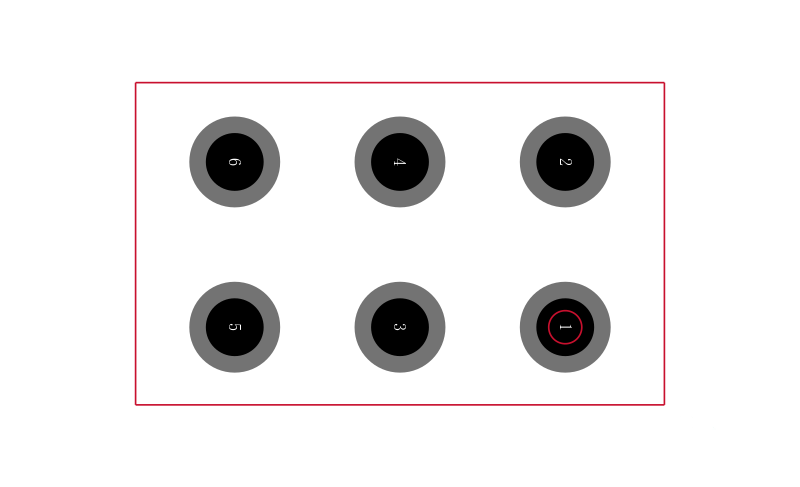

TSW-103-26-T-D

2.54mm 方针

针座 通孔 6 位置 0.100"（2.54mm）

立创商城:
2.54mm 方针

得捷:
CONN HEADER VERT 6POS 2.54MM

艾睿:
Reduce safety concerns with this unshrouded TSW-103-26-T-D header connector from Samtec which will reduce the possibility of accidentally shorting pins when a printed circuit board is being used. This HDR connector&s;s 6 contacts that are made out of phosphor bronze and plated with tin over nickel. This is a 2-row connector. It has a maximum voltage rating of 550 VAC. It has a straight body orientation. Its pitch is 2.54 mm. It has a header type gender. This device has a maximum current rating of 6.3 A/contact. It uses the solder termination method. This connector has an operating temperature of -55 to 105 °C. TSW-103-26-T-D is housed in black polyester. This product is 7.62 mm long, 8.38 mm tall and 5.08 mm deep.

安富利:
Conn Unshrouded Header HDR 6 POS 2.54mm Solder ST Thru-Hole

Newark:
# SAMTEC  TSW-103-26-T-D  Board-To-Board Connector, 2.54 mm, 6 Contacts, Header, TSW Series, Through Hole, 2 Rows
