TPS77515MPWPREP
快速瞬态响应500 mA低压差稳压器 FAST-TRANSIENT-RESPONSE 500-mA LOW-DROPOUT VOLTAGE REGULATORS
description
The TPS775xx devices are designed to have a fast transient response and be stable with a 10-μF low ESR capacitors. This combination provides high performance at a reasonable cost.
Controlled Baseline
− One Assembly/Test Site, One Fabrication Site
Extended Temperature Performance of −55°C to 125°C
Enhanced Diminishing Manufacturing Sources DMS Support
Enhanced Product Change Notification
Qualification Pedigree†
Open Drain Power-On Reset With 200-ms Delay
500-mA Low-Dropout Voltage Regulator
Available in 1.5-V, 1.6-V, 1.8-V, 2.5-V, 3.3-V Fixed Output and Adjustable Versions
Dropout Voltage to 169 mV Typ at 500 mATPS77533
Ultralow 85 μA Typical Quiescent Current
Fast Transient Response
2% Tolerance Over Specified Conditions for Fixed-Output Versions

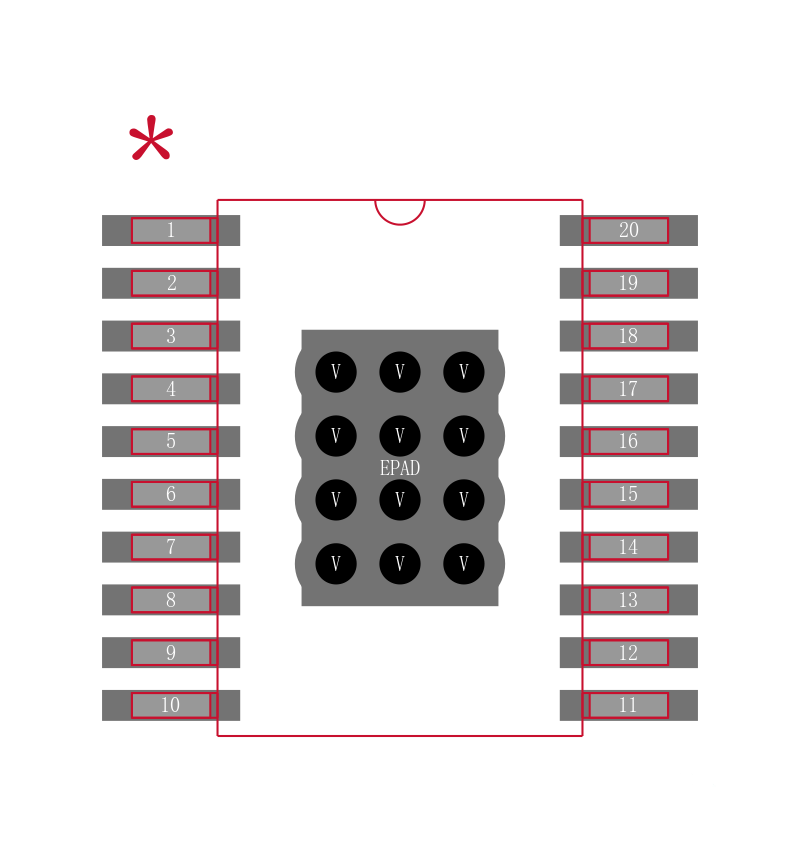

20-Pin TSSOP PowerPAD™ PWP Package
Thermal Shutdown Protection
