TPS61130RSAR

具有1.1A开关和集成的LDO同步SEPIC /反激转换器 SYNCHRONOUS SEPIC / FLYBACK CONVERTER WITH 1.1A SWITCH AND INTEGRATED LDO

Description

The TPS6113x devices provide a complete power supply solution for products powered by either a one-cell Li-Ion or Li-Polymer, or two- to four-cell Alkaline, NiCd, or NiMH batteries. The devices can generate two regulated output voltages. It provides a simple and efficient buck-boost solution for generating 3.3 V out of an input voltage that can be both higher and lower than the output voltage. The converter provides a maximum output current of at least 300 mA with supply voltages down to 1.8 V. The implemented SEPIC converter is based on a fixed frequency, pulse-width-modulation PWM controller using a synchronous rectifier to obtain maximum efficiency. The maximum peak current in the SEPIC switch is limited to a value of 1600 mA.

The converter can be disabled to minimize battery drain. During shutdown, the load is completely disconnected from the battery. A low-EMI mode is implemented to reduce ringing, and in effect, lower radiated electromagnetic energy when the converter enters the discontinuous conduction mode. A power good output at the SEPIC stage provides additional control of any connected circuits like cascaded power supply stages, or microprocessors.

Features

• Synchronous, Up to 90% Efficient, SEPIC Converter With 300-mA Output Current From 2.5-V Input

• Integrated 200-mA Reverse Voltage Protected LDO for DC-DC Output Voltage Post Regulation or Second Output Voltage

• 40-μA Typical Quiescent Current

• Input Voltage Range: 1.8 V to 5.5 V

• Fixed and Adjustable Output Voltage Options up to 5.5 V

• Power Save Mode for Improved Efficiency at Low- Output Power

• Low Battery Comparator

• Power Good Output

• Low EMI-Converter Integrated Antiringing Switch

• Load Disconnect During Shutdown

• Overtemperature Protection

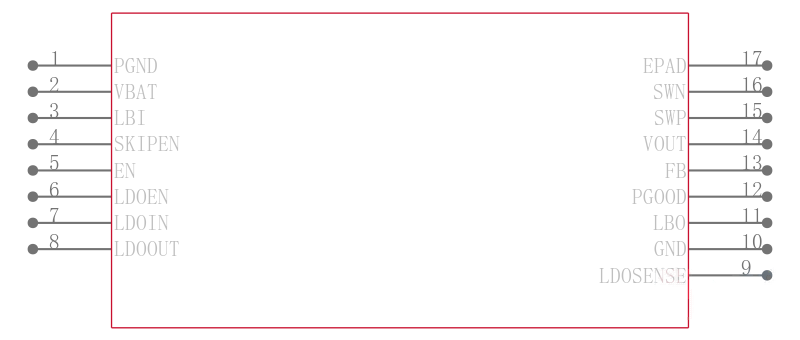

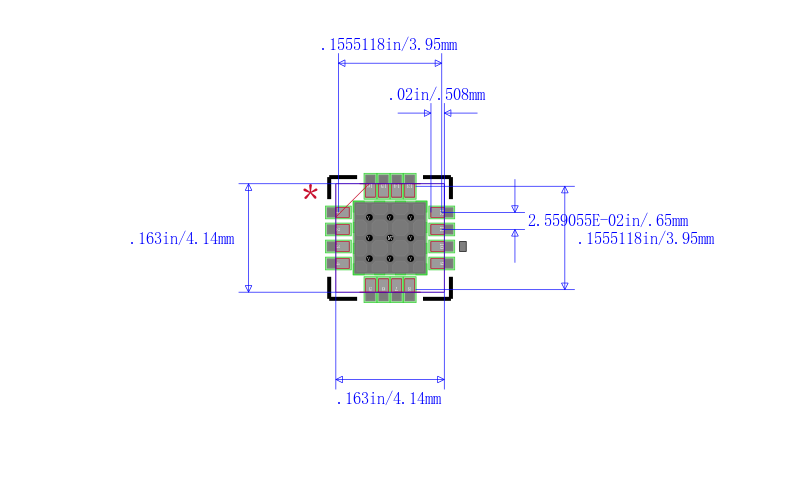

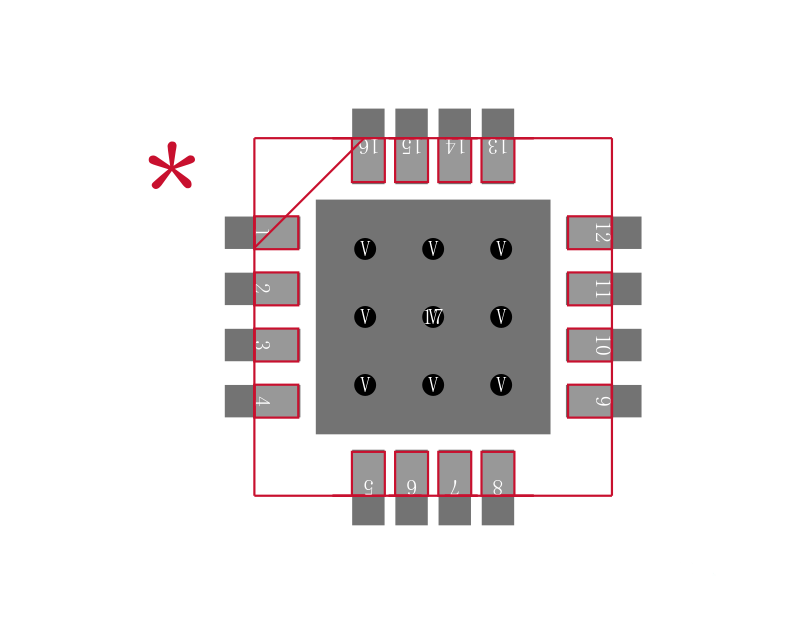

• Available in a Small 4-mm × 4-mm VQFN-16 or in a TSSOP-16 Package

Applications

• All Single Cell Li, Dual or Triple Cell Battery or USB Powered Products as MP-3 Player, PDAs, and Other Portable Equipment

• Dual Input or Dual Output Mode

• High Efficient Li-Ion to 3.3-V Conversion
