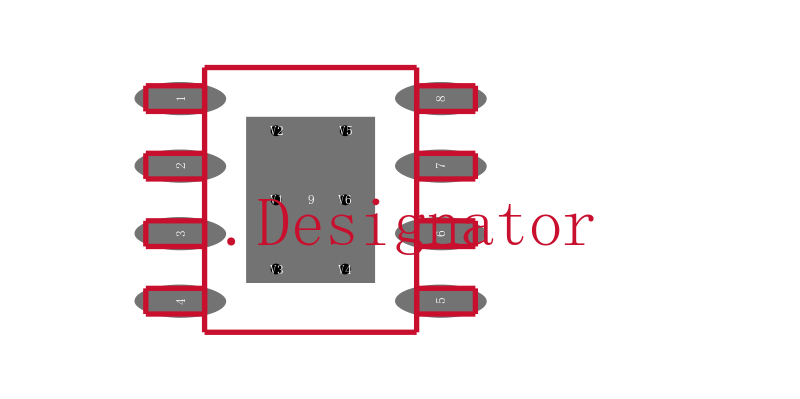

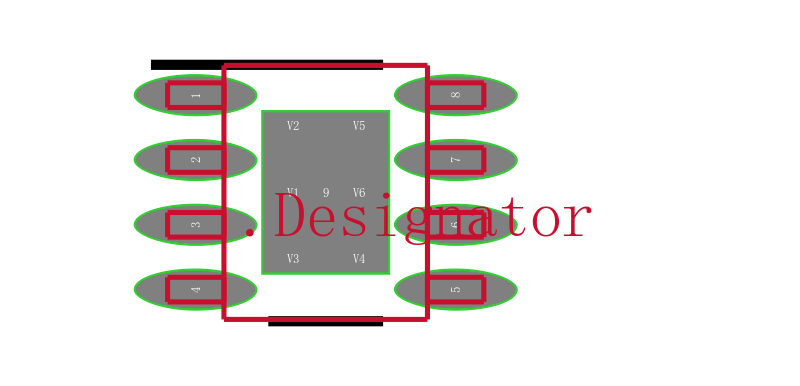

TPS54336ADDA
TEXAS INSTRUMENTS TPS54336ADDA 直流-直流开关降压逐步递减稳压器, 可调, 4.5V-28V输入, 800mV-25V输出, 3A输出, PPAD-8
The is a Synchronous Step-down SWIFT Converter with an input-voltage range of 4.5 to 28V. This device includes an integrated low-side switching FET that eliminates the need for an external diode which reduces component count. Efficiency is maximized through the integrated 128mR and 84mR MOSFETs, low IQ and pulse skipping at light loads. Using the enable pin, the shutdown supply current is reduced to 2µA. This step-down buck converter provides accurate regulation for a variety of loads with a well-regulated voltage reference that is 1.5% over-temperature. Cycle-by-cycle current limiting on the high-side MOSFET protects the TPS5433xA family of devices in overload situations and is enhanced by a low-side sourcing current limit which prevents current runaway. A low-side sinking current-limit turns off the low-side MOSFET to prevent excessive reverse current. Hiccup protection is triggered if the over-current condition continues for longer than the preset time.
- .
- Synchronous 128mR and 84mR MOSFETs for 3A continuous output current
- .
- Adjustable soft-start, fixed 340kHz frequency
- .
- Low 2µA shutdown, quiescent current
- .
- 0.8V Voltage reference with ±0.8% accuracy
- .
- Current mode control
- .
- Monotonic start-up into pre-biased outputs
- .
- Pulse skipping for light-load efficiency
- .
- Hiccup mode overcurrent protection
- .
- Thermal shutdown TSD and overvoltage transition protection
- .
- Green product and no Sb/Br
Device has limited built-in ESD protection. The leads should be shorted together or the device placed in conductive foam during storage or handling to prevent electrostatic damage to the MOS gates.
