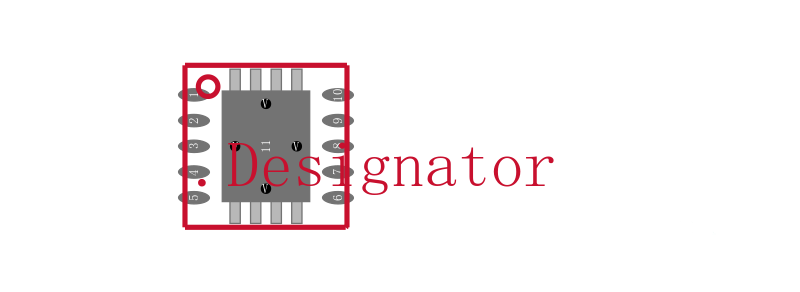

TPS63060DSCR
TEXAS INSTRUMENTS TPS63060DSCR 直流-直流开关降压-升压稳压器, 可调, 2.5V-12V输入, 2.5V-8V输出, 2A输出, SON-10
The is a high input voltage Buck-boost Converter with 2A switch current, provides a power supply solution for products powered by either three-cell up to six-cell alkaline, NiCd or NiMH battery or a one-cell or dual-cell Li-ion or Li-polymer battery. Output currents can go as high as 2A while using a dual-cell Li-Ion or Li-polymer battery and discharge it down to 5V or lower. The buck-boost converter is based on a fixed frequency, pulse-width-modulation PWM controller using synchronous rectification to obtain maximum efficiency. At low load currents, the converter enters power-save mode to maintain high efficiency over a wide load current range. The power-save mode can be disabled, forcing the converter to operate at a fixed switching frequency. The maximum average current in the switches is limited to a typical value of 2.25A. The output voltage is programmable using an external resistor divider or is fixed internally on the chip.
- .
- Up to 93% efficiency
- .
- 2A at 5V buck mode, VIN<10V, 1.3A at 5V boost mode, VIN>4V Output current
- .
- Automatic transition between step down and boost mode
- .
- <30µA Typical device quiescent current
- .
- Fixed and adjustable output voltage options from 2.5 to 8V
- .
- Power-save mode for improved efficiency at low output power
- .
- Forced fixed-frequency operation at 2.4MHz and synchronization possible
- .
- Power good output
- .
- Buck-boost overlap control
- .
- Load disconnect during shutdown
- .
- Over-temperature protection
- .
- Overvoltage protection
- .
- Green product and no Sb/Br
Device has limited built-in ESD protection. The leads should be shorted together or the device placed in conductive foam during storage or handling to prevent electrostatic damage to the MOS gates.
