TLV70130DBVT

TLV70130DBVT

TI(德州仪器) 主动器件

TEXAS INSTRUMENTS  TLV70130DBVT  固定电压稳压器, LDO, 2.5V至24V, 400mV压差, 3V输出, 150mA输出, SOT-23-5

LDO(低压降)线性稳压器,150mA,3.0V 至 3.9V,Texas Instruments


立创商城:
TLV70130DBVT


德州仪器TI:
150-mA, 24-V, ultra-low-IQ, low-dropout voltage regulator for 3 V and 3.3 V


得捷:
IC REG LINEAR 3V 150MA SOT23-5


欧时:
Texas Instruments TLV70130DBVT LDO 稳压器, 3 V输出, 150mA最大输出, 2%精确度, 2.5 → 24 V输入


贸泽:
LDO Voltage Regulators 150mA,Ultra-Low IQ High Vin LDO Reg


e络盟:
TEXAS INSTRUMENTS  TLV70130DBVT  固定电压稳压器, LDO, 2.5V至24V, 400mV压差, 3V输出, 150mA输出, SOT-23-5


艾睿:
This LDO TLV70130DBVT linear regulator developed by Texas Instruments keeps the power stable! Its typical dropout voltage at current is 0.075@10mA|0.4@50mA V. It has an overall accuracy of ±2 %. This voltage regulation device&s;s single output can produce a current up to 0.15 A. Supply your circuit with sufficient power by implementing this, which requires a minimum input voltage of 2.5 V that does not exceed 24 V. With a fixed output that has a voltage of 3 V, this is power management at its best. A load regulation of 50mV and line regulation of 50mV is necessary for providing a constant voltage level at your output. This component will be shipped in tape and reel packaging for effective mounting and safe delivery. This voltage regulation device has a minimum operating temperature of -40 °C and a maximum of 125 °C. Its polarity is positive.


安富利:
LDO Regulator Pos 3V 0.15A 5-Pin SOT-23 T/R


Chip1Stop:
LDO Regulator Pos 3V 0.15A 5-Pin SOT-23 T/R


Verical:
LDO Regulator Pos 3V 0.15A 5-Pin SOT-23 T/R


Newark:
# TEXAS INSTRUMENTS  TLV70130DBVT  Fixed LDO Voltage Regulator, 2.5V to 24V, 400mV Dropout, 3Vout, 150mAout, SOT-23-5


DeviceMart:
IC REG LDO 3V .15A SOT23-5


TLV70130DBVT中文资料参数规格
技术参数

输出接口数 1

输出电压 3 V

输出电流 150 mA

针脚数 5

静态电流 0.0032 mA

输出电容类型 Ceramic

跌落电压 400 mV

调节输出数 1

输入电压Max 24 V

输入电压Min 2.5 V

输出电流Max 150 mA

工作温度Max 125 ℃

工作温度Min -40 ℃

精度 ±2 %

输入电压 ≤24 V

封装参数

安装方式 Surface Mount

引脚数 5

封装 SOT-23-5

外形尺寸

长度 3.05 mm

宽度 1.75 mm

高度 1.45 mm

封装 SOT-23-5

物理参数

工作温度 -40℃ ~ 125℃

其他

产品生命周期 Active

包装方式 Tape & Reel TR

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

REACH SVHC标准 No SVHC

REACH SVHC版本 2015/06/15

TLV70130DBVT引脚图与封装图
TLV70130DBVT引脚图

TLV70130DBVT引脚图

TLV70130DBVT封装图

TLV70130DBVT封装图

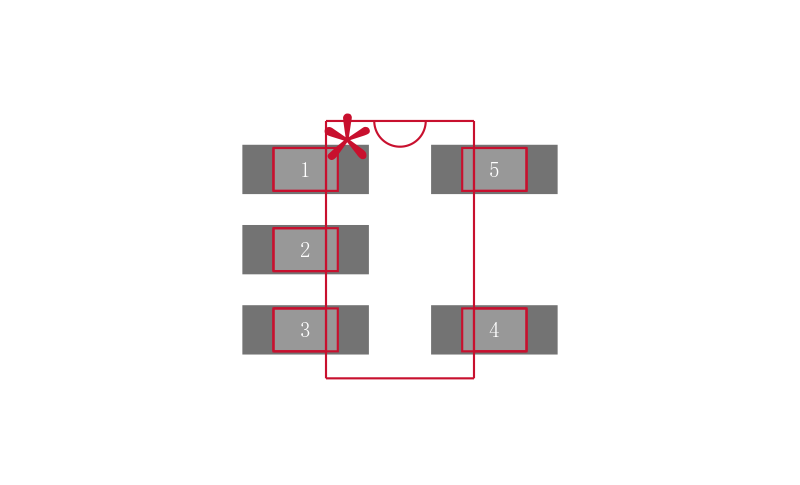

TLV70130DBVT封装焊盘图

TLV70130DBVT封装焊盘图

在线购买TLV70130DBVT
型号 制造商 描述 购买
TLV70130DBVT TI 德州仪器 TEXAS INSTRUMENTS  TLV70130DBVT  固定电压稳压器, LDO, 2.5V至24V, 400mV压差, 3V输出, 150mA输出, SOT-23-5 搜索库存
替代型号TLV70130DBVT
图片 型号/品牌/封装 代替类型 描述 替代型号对比

型号: TLV70130DBVT

品牌: TI 德州仪器

封装: SOT-23 150mA 5Pin

当前型号

TEXAS INSTRUMENTS  TLV70130DBVT  固定电压稳压器, LDO, 2.5V至24V, 400mV压差, 3V输出, 150mA输出, SOT-23-5

当前型号

型号: TLV70130DBVR

品牌: 德州仪器

封装: SOT-23

类似代替

低压差稳压器 150mA,Ultra-Low IQ High Vin LDO Reg

TLV70130DBVT和TLV70130DBVR的区别
