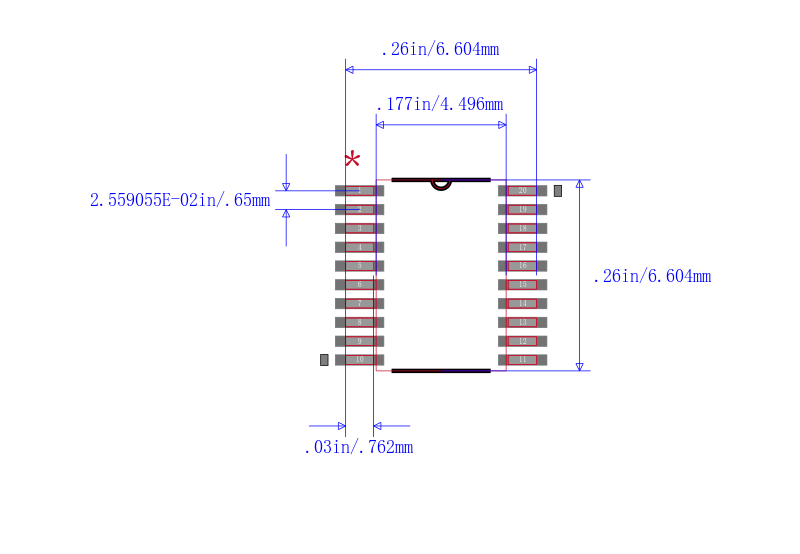

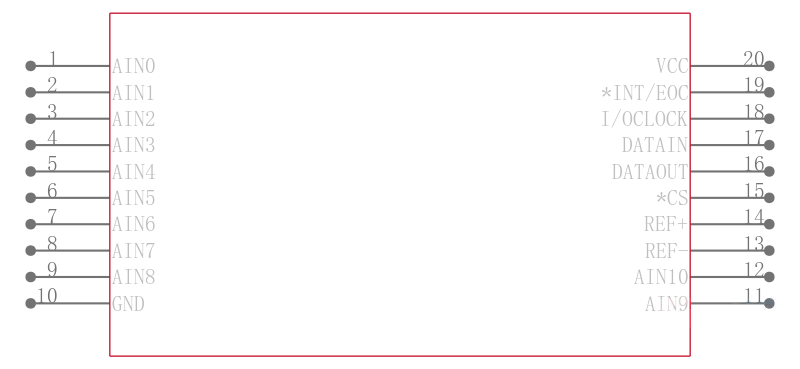

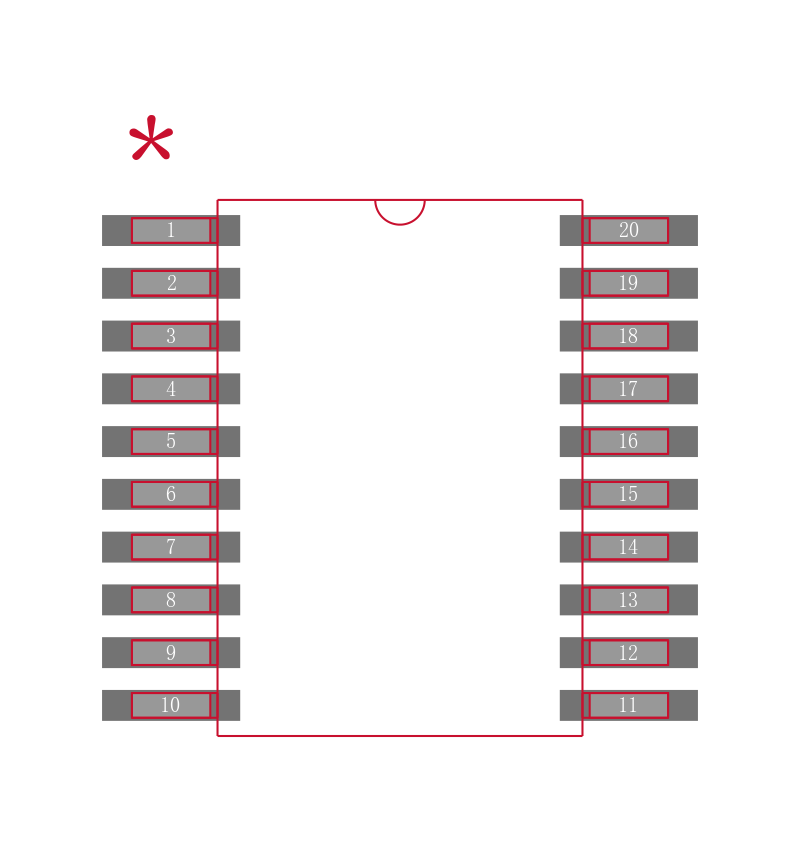

TLV2556MPWREP

12位200 KSPS 11通道低功耗串行模拟到数字，内置电压基准转换器 12-BIT 200-KSPS 11-CHANNEL LOW-POWER SERIAL ANALOG-TO-DIGITAL CONVERTER WITH INTERNAL REFERENCE

The TLV2556 is a 12-bit, switched-capacitor, successive-approximation, analog-to-digital converter ADC. The ADC has three control inputs [chip select CS, the input-output clock, and the address/control input DATAIN], designed for communication with the serial port of a host processor or peripheral through a serial 3-state output.

In addition to the high-speed converter and versatile control capability, the device has an on-chip 14-channel multiplexer that can select any one of 11 inputs or any one of three internal self-test voltages using configuration register 1. The sample-and-hold function is automatic. At the end of conversion, when programmed as EOC, the pin 19 output goes high to indicate that conversion is complete. If pin 19 is programmed as INT, the signal goes low when the conversion is complete. The converter incorporated in the device features differential, high-impedance reference inputs that facilitate ratiometric conversion, scaling, and isolation of analog circuitry from logic and supply noise. A switched-capacitor design allows low-error conversion over the full operating temperature range. An internal reference is available and its voltage level is programmable via configuration register 2 CFGR2.

The TLV2556 is characterized for operation from TA = –55°C to 125°C.
