TLV2432QDG4

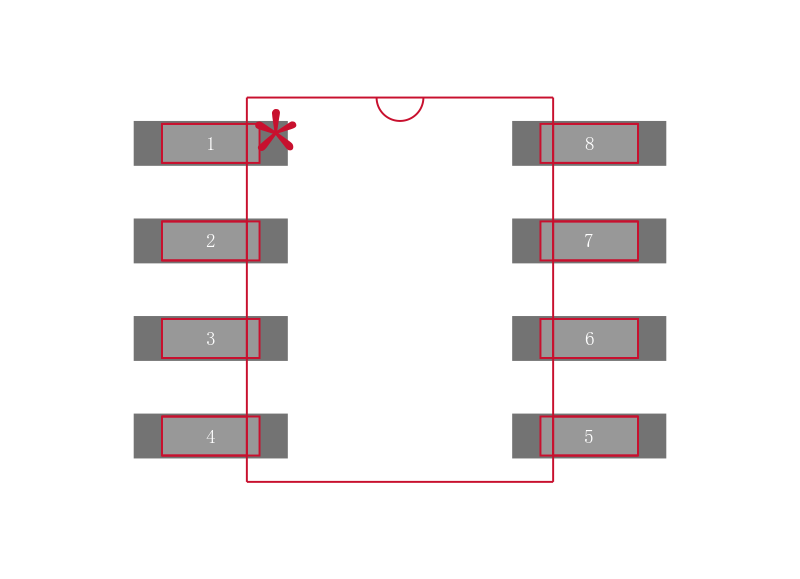

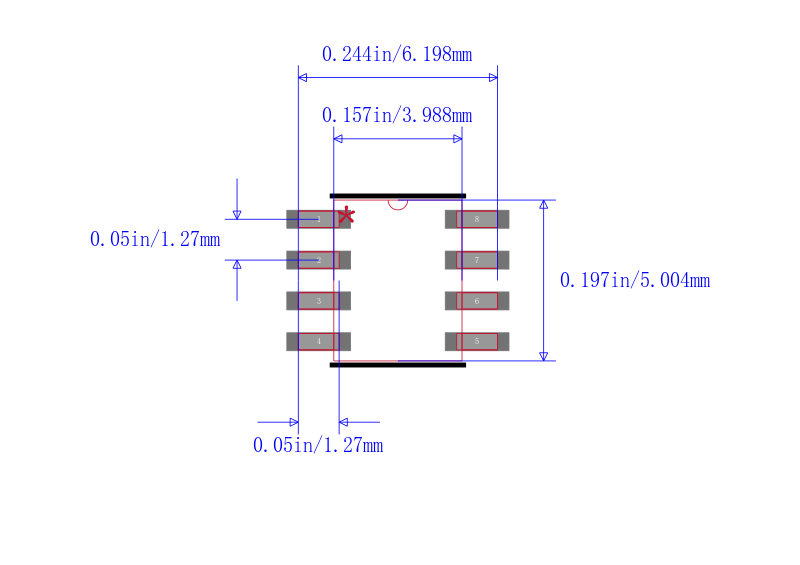

双路高级 LinCMOS 和轨到轨输出 10V 运算放大器 8-SOIC -40 to 125

description

The TLV243x and TLV243xA are low-voltage operational amplifier from Texas Instruments. The

common-mode input voltage range for each device is extended over the typical CMOS amplifiers making them suitable for a wide range of applications.

Output Swing Includes Both Supply Rails

Extended Common-Mode Input Voltage

  Range...0 V to 4.5 V Min with 5-V Single Supply

No Phase Inversion

Low Noise. . . 18 nV/√HzTyp at f = 1 kHz

Low Input Offset Voltage

   950 µV Max at TA= 25°C TLV243xA

Low Input Bias Current...1 pA Typ

Very Low Supply Current. . . 125 µA Per Channel Max

600-ΩOutput Drive

Macromodel Included

Available in Q-Temp Automotive

  HighRel Automotive Applications

  Configuration Control / Print Support

  Qualification to Automotive Standards
